Featured Custom OEM Architectural Door Assemblies
Fabricated utilizing high-tensile 6063-T5 and 6061-T6 structural aluminum alloys, multi-point electromechanical locking arrays, and marine-grade fluorocarbon passivation.
Guangdong Dejiyoupin (DERCHI) Industrial Authority
Consistently ranked among China's Top 10 premium window and door manufacturers. Headquartered in Foshan's metallurgy hub, our mega-complex serves commercial builders across 50+ countries.
Precision Metallurgy & Bespoke OEM/ODM Protocols
From architectural structural profiling to custom thermal barrier injection, DERCHI executes full-cycle manufacturing under strict ISO 9001 quality supervision. For enterprise procurement managers, general contractors, and facade consultants, our automated facility delivers flawless corner crimping, high-precision laser mitering, and complete pre-assembly verification prior to dispatch.
Our products strictly conform to American AAMA/WDMA, European CE, and Australian AS2047 benchmark testing. Whether fulfilling specialized cyclonic wind ratings or Passivhaus thermal envelope criteria, our engineers provide complete calculation sheets and shop drawing approval models within 24 business hours.
Architectural Door Taxonomy & Application Matrices
Matching architectural intent, structural load requirements, and thermal performance parameters to the ideal aluminum entry system.

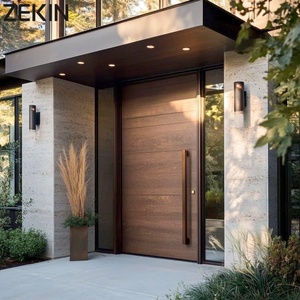

Architectural Pivot Entrance Assemblies
Engineered for high-volume grand foyers. Leverages top-hung concealed hydraulic floor bearings rated to 650kg leaf mass. Features an integrated offset axis preventing thermal warp over 4000mm continuous profile spans, balanced with dual-direction perimeter compression brush gaskets.

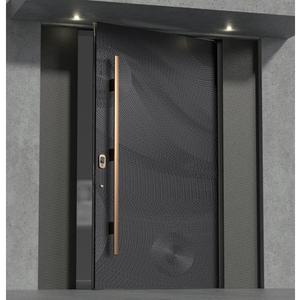

Multi-Chamber Armored Security Doors
Combines 3.0mm structural 6063-T5 aluminum framing with cast aluminum plate relief facings and manganese armor inserts. Incorporates 14-point mechanical locking bolts, anti-tamper cylinder housings, and internal polyurethane acoustic core boards achieving sound dampening over Rw 42 dB.
Thermally Broken Monolithic Entry Portals
Utilizes multi-cavity Polyamide PA66 GF25 reinforced thermal insulation barriers to sever conductive thermal bridging. Achieves overall system U-values down to 0.95 W/(m²·K), making it optimal for high-altitude snow conditions, harsh freeze-thaw cycles, or tropical cooling efficiency.
| System Category | Alloy Profile Matrix | Thermal Break Tech | Wind Load Resistance | Acoustic Rating (Rw) | Recommended Building Scope |
|---|---|---|---|---|---|
| Bespoke Pivot System | 6063-T6 / 3.0mm Wall Thickness | Dual PA66 GF25 34mm Bars | Class C5 / DP 65 PSF | 38 dB - 42 dB | Luxury Custom Villas, Flagship Showrooms |
| Armored Cast Plate | 6061 Core + 8.0mm Cast Plate | Composite Multi-Layer Core | Class C4 / DP 55 PSF | 43 dB - 48 dB | High-Security Compounds, Gated Estates |
| Minimalist Glazed Entry | 6063-T5 Ultra-Slim Sightline | Thermal Polyurethane Cavity | Class C3 / DP 45 PSF | 36 dB - 40 dB | Modernist Residences, Boutique Hotels |

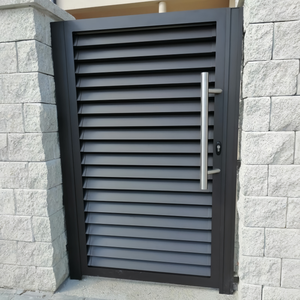

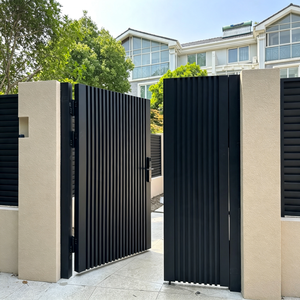

| Architectural Louver Gate | 6063-T5 High-Tensile Marine | Non-Thermal Direct Ventilation | Class C4 / DP 50 PSF | N/A (Air permeable) | Perimeter Boundaries, Coastal Enclosures |
Technological & Design Evolution in Aluminum Entrances
Analyzing fundamental shifts in building envelope engineering, electromechanical access integration, and architectural aesthetics over the next decade.
Passive Envelope Compliance
Modern building directives necessitate entrance assemblies achieving total thermal envelope continuity. By leveraging multi-stage continuous EPDM foamed gaskets, warm-edge aerogel spacers, and vacuum-insulated panels (VIP), modern aluminum doors eliminate condensation risks and reduce building HVAC energy loss by up to 34%.
Concealed Biometric Access
Surface-mounted smart locks are being replaced by completely concealed electromechanical multipoint locks. Integrated directly into the extrusion chambers, these systems communicate via encrypted OSDP/Wiegand protocols, supporting 3D facial scanning, sub-dermal biometric vein recognition, and smart-home building automation links.
Fluorocarbon PVDF Chemistry
Under extreme tropical UV index levels and airborne ocean salinity, standard polyester powder finishes succumb to chalking and micro-cracking within five years. The sector is moving toward 3-coat, 2-bake 70% Kynar 500 / Hylar 5000 PVDF fluorocarbon resin coatings that exceed AAMA 2605 specifications with 30-year chromatic retention.
Monolithic Heavyweight Extrusion
Architects demand floor-to-ceiling visual continuity without horizontal transoms. This shift requires thick-walled (up to 3.5mm) seamless extruded internal profiles capable of withstanding torsional stress, negative pressure buffeting, and daily cycling fatigue across doors exceeding 500 kilograms in total mass.
B2B Procurement Trends & Supply Chain Risk Mitigation
Optimizing margin realization, transit damage mitigation, and factory-direct integration for real estate developers and regional window/door wholesalers.
Consolidated Container Logistics vs. Multi-Vendor Fragmentation
Historically, procurement departments sourced entry doors, folding patio systems, interior wooden doors, and garage access gates from separate regional workshops. This introduced severe supply chain friction: mismatched anodized surface textures, out-of-sync construction site schedules, and multiple LCL ocean shipments that multiplied harbor clearing fees.
Leading real estate groups now partner directly with comprehensive mega-manufacturers like DERCHI. By consolidating exterior entrance pivot doors, soundproof terrace sliders, and architectural perimeter gates into single 40-foot High Cube (40HQ) FCL containers, international buyers slash overall ocean logistics overhead by 22% to 35% while establishing single-point contractual accountability.
- ✔ Engineered export crating: 5-ply honeycomb cardboard + fumigated solid plywood framing.
- ✔ Moisture-barrier packaging with industrial desiccant loads to counter maritime humidity.
- ✔ Prefabricated installation frames with pre-machined anchors for rapid on-site erection.
Frequently Asked Commercial & Engineering Questions
Direct, transparent answers regarding alloy metallurgy, finish durability, international building codes, and container freight protocols.
What are the metallurgical differences between 6063-T5 and 6061-T6 aluminum alloys in entry doors?
+
How does DERCHI prevent galvanic corrosion between aluminum framing and stainless steel fasteners?
+
Can large-format aluminum pivot doors achieve airtight and watertight certification in high wind zones?
+
What surface finishing process provides the longest life in coastal installations?
+
What CAD and shop drawing deliverables are provided to international contractors prior to fabrication?
+
How does your factory accommodate third-party smart lock and home automation hardware integration?
+
What are the standard lead times for custom OEM prototype and container volume orders?
+
What steps are taken to guarantee zero damage during 30 to 45 days of ocean transit?
+
Can DERCHI supply doors that comply with strict thermal insulation codes like Passivhaus or Title 24?
+
What warranty terms and spare parts guarantees are provided to wholesale distributors?
+
Initiate Your Custom OEM Door Engineering Request
Connect directly with our senior facade engineering team in Foshan. Submit your project door schedule, CAD concepts, or target performance specifications to receive complete structural analyses, factory-direct pricing, and shop drawings.
