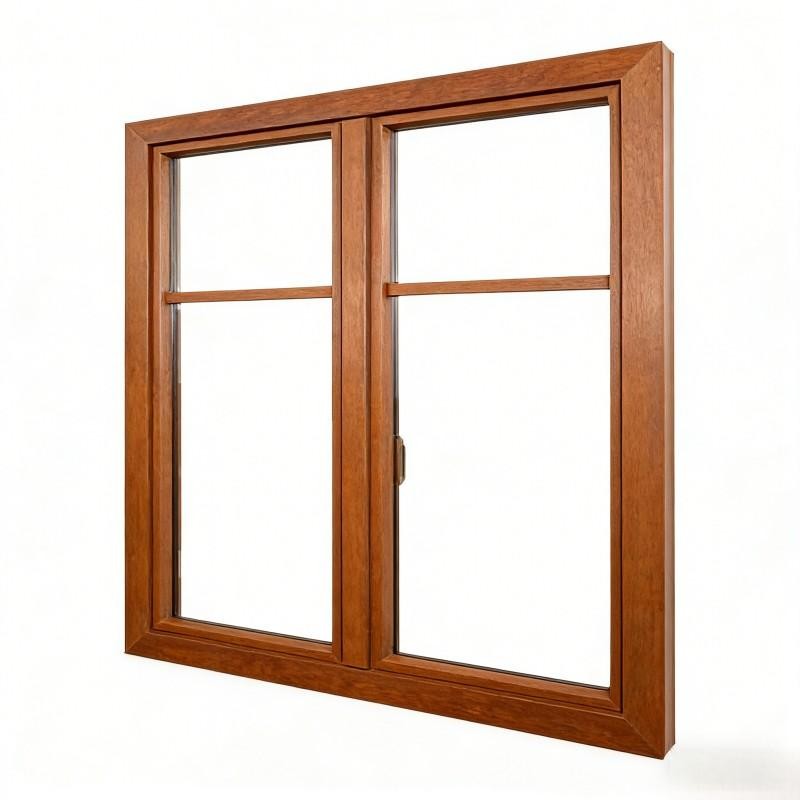

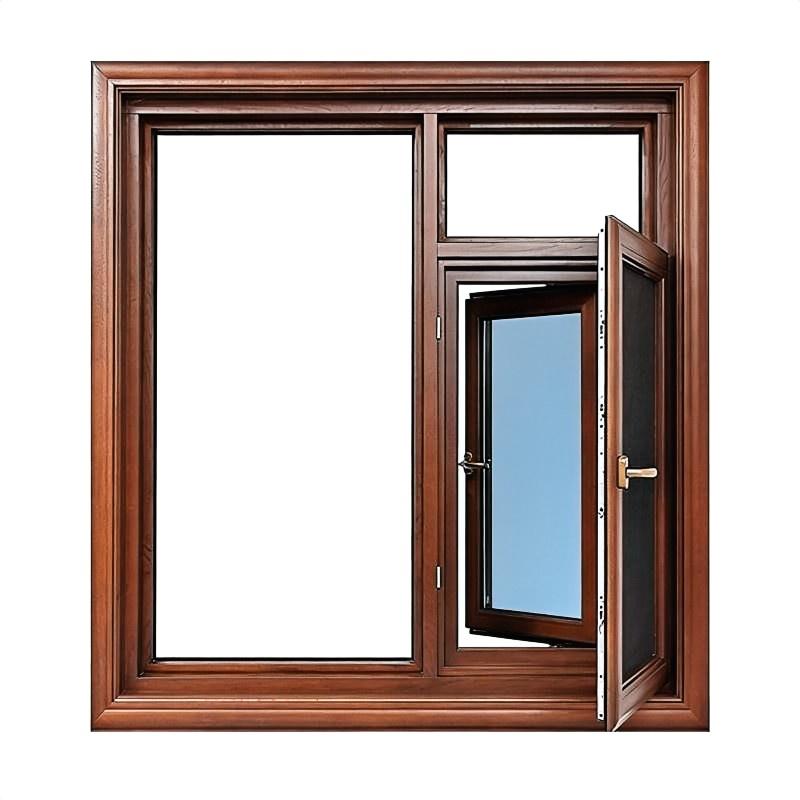

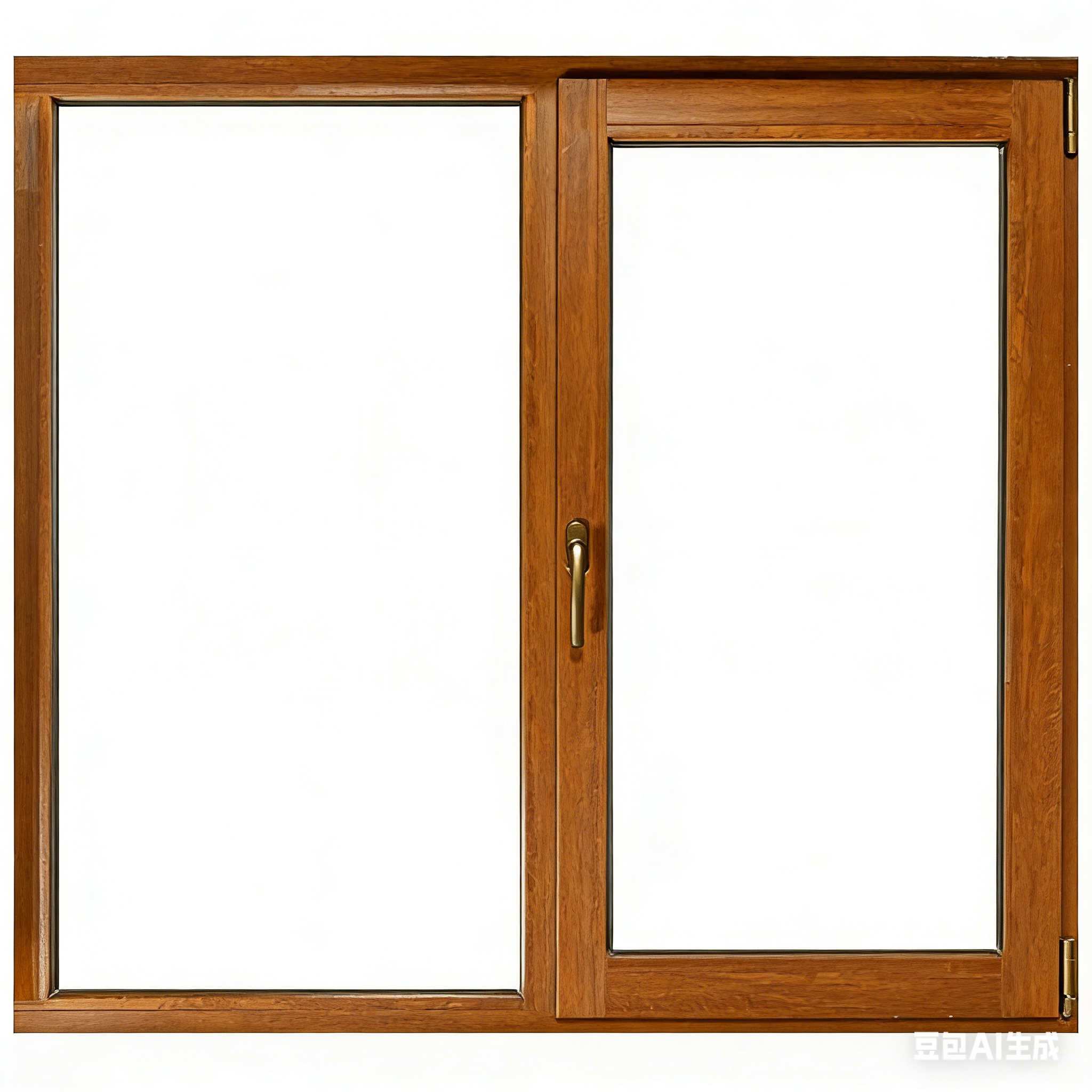

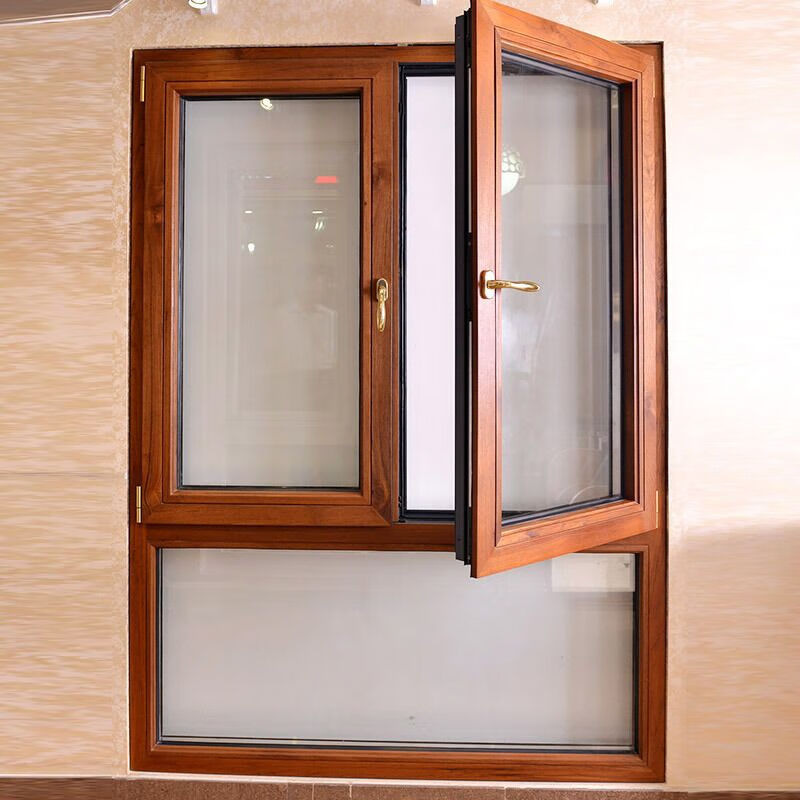

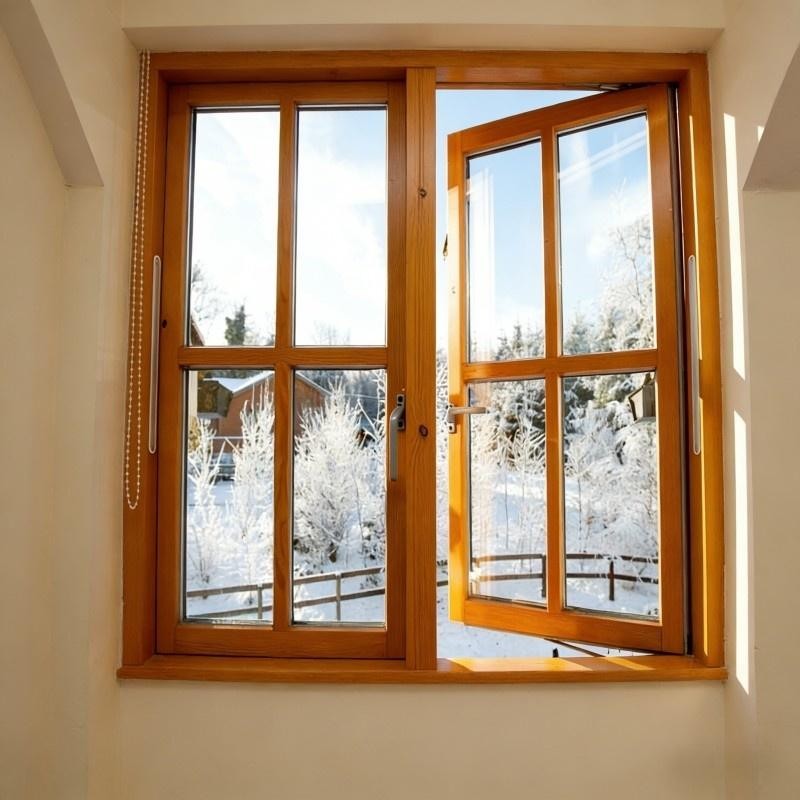

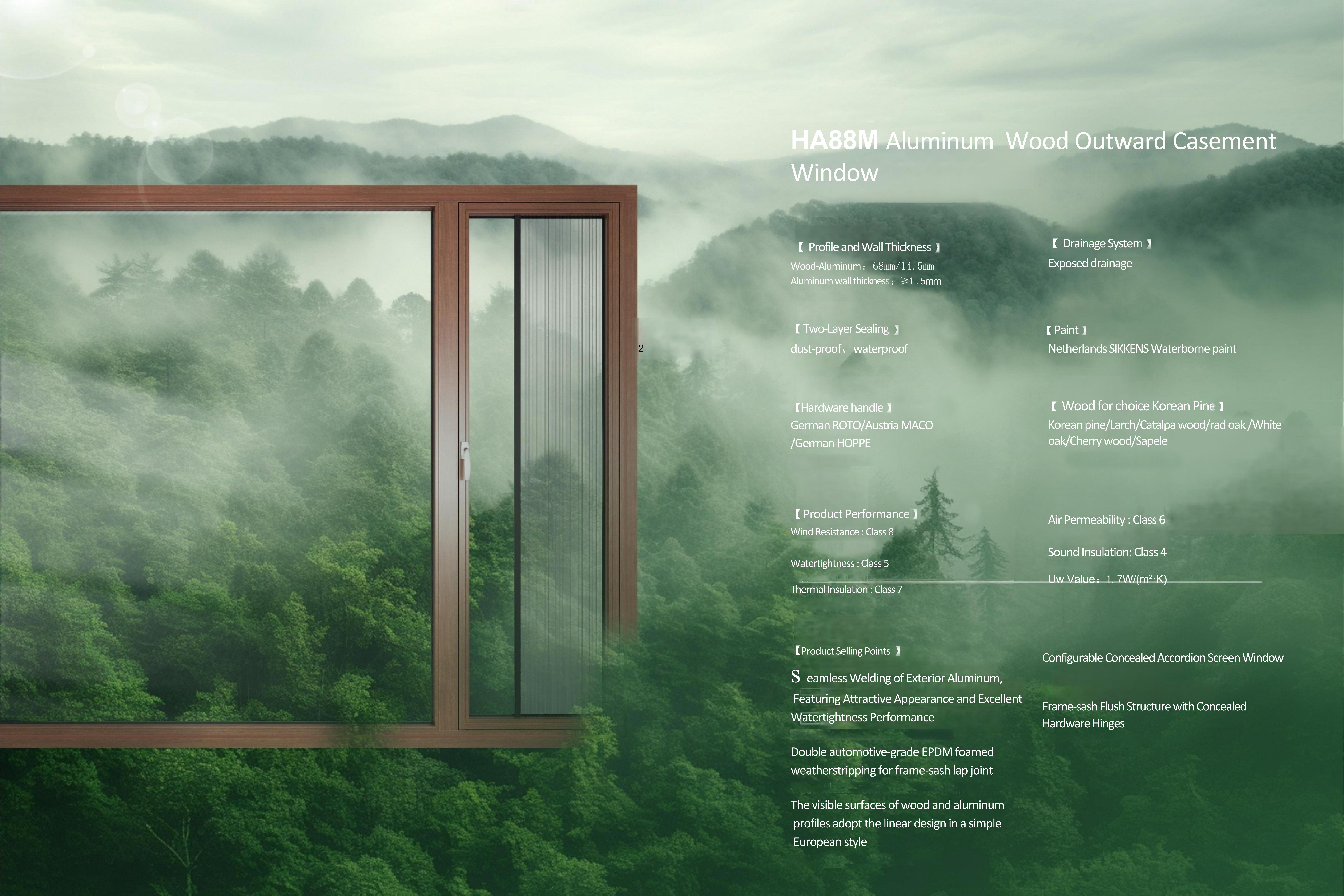

High Performance Aluminum Clad Wood Casement Wooden Window Frame Soundproof Insulated for Villa Residential Building Exterior
Product Description
Product Parameters
| Window frame thickness | 60mm, 70mm, 80mm, 108mm, 120mm |
| Glass |
Double-layer insulating glass 5mm + 12A(15A, 20A, 22A) + 5mm Double-layer insulating glass 5mm + 12Ar(15Ar, 20Ar, 22Ar) + 5mm Double-layer insulating Low-E glass Triple-layer insulating glass 5mm + 9A + 5mm + 9A + 5mm Double-layer insulating laminated glass: (5mm + 0.76PVB + 5mm) + 12A + 5mm Triple-layer insulating laminated glass: (5mm + 0.76PVB + 5mm) + 12A + 5mm + 12A + 5mm |

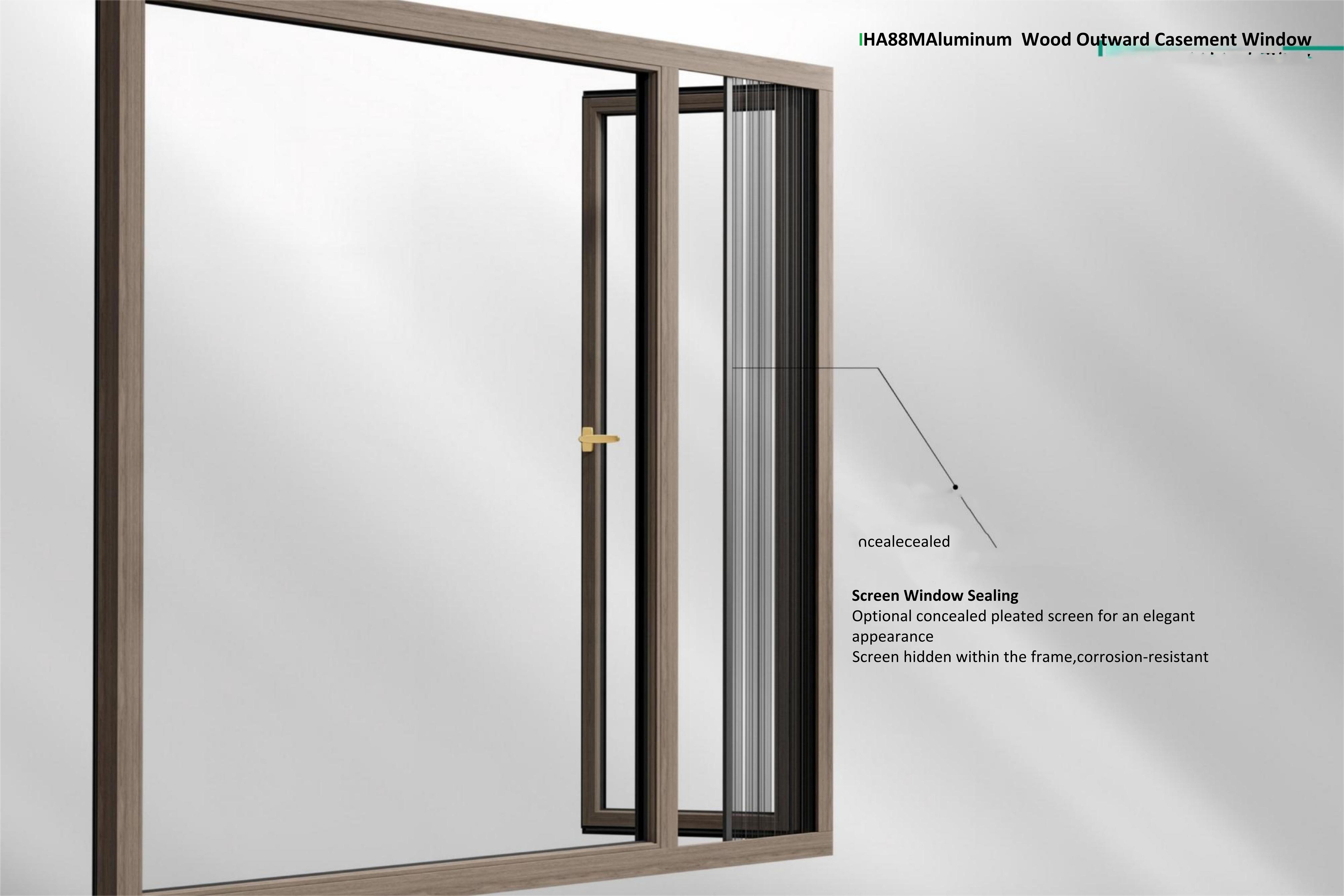

| Gauze element | Diamond mesh screen window, 304 stainless steel |
| Hardware | Germany Origin Made Brand SIEGENIA/ROTO/HOPPE Hardware & Accessories. |
| Open the fan | One fan, two fans, three fans, four fans |
| Wood paint | German Remax water-based paint aluminum-clad wood Windows focus on wood protective paint (OSMO/ Sikkens) + heavy-duty hinges GU |
| MOQ | Customized sizes less than 1.5 square meters will be charged based on 1.5 square meters |
Measurement & Ordering Instructions
The measured width (W) and height (H) of the opening are not the dimensions directly ordered from the manufacturer. Adjustments need to be made according to the installation gap:
Width order size = minimum opening width (W) - installation gap (on each side)
Height order size = minimum opening height (H) - installation gap (on each side)
Installation gap (reserved gap):
This is reserved space for accommodating foam adhesive, adjusting window level and verticality, and adapting to minor deformations.
Conventional value: It is common to reserve a gap of 10mm-20mm on each side (left, right, top and bottom). The specific values need to be determined based on the following factors:
- Wall flatness: The more uneven it is, the larger the gap needs to be appropriately increased.
- Manufacturer requirements: Different profile series may have different standard gap requirements. Be sure to confirm specific requirements with the manufacturer before or after measurement!
Example: The minimum width of the hole measured is W=1498mm, and the minimum height is H=1598mm. The manufacturer requires a 15mm gap to be reserved on each side.
Width order size = 1498mm - (15mm * 2) = 1468mm
Height order size = 1598mm - (15mm * 2) = 1568mm
The window frame size ordered from the manufacturer is: width 1468mm x height 1568mm.
Width order size = 1498mm - (15mm * 2) = 1468mm
Height order size = 1598mm - (15mm * 2) = 1568mm
The window frame size ordered from the manufacturer is: width 1468mm x height 1568mm.
Frequently Asked Questions
Q1
What is your delivery time?
20-35 days delivery after deposit and drawing confirmation. The actual situation according to the manager to confirm.
Q2
How can I know your price?
The price is based on the buyer's specific requirements, the actual price is subject to the manager, so please provide the following information to help us provide you with an accurate quote:
1) Window or door opening size;
2) Window frame color;
3) Glazing type and thickness (single pane, double pane, laminated, or other) as well as the color (clear, tinted, reflective, Low-E, or other, with argon gas or without argon gas).
1) Window or door opening size;
2) Window frame color;
3) Glazing type and thickness (single pane, double pane, laminated, or other) as well as the color (clear, tinted, reflective, Low-E, or other, with argon gas or without argon gas).
Q3
What is your payment terms?
Normally, 30% - 50% of total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable.
Q4
What is spectrally selective glazing?
Coated or tinted glazing with optical properties that is transparent to some wavelengths of energy and reflective to others. Typical spectrally selective coatings are transparent to visible light and reflect short-wave and long-wave infrared radiation.
Q5
What kinds of packing do you have?
There are three kinds of packing, such as pearl cotton, pearl cotton + wooden frame, pearl cotton + wooden box. The glass packing is wooden frame/corner guard + strapping. If it is a full container, we suggest using pearl cotton and wooden frames for glass to save space and load more goods. The best packing is pearl cotton + wooden crate; some bulk goods and shipments to countries like the United States, Australia, and European regions require wooden crates for enhanced protection.
