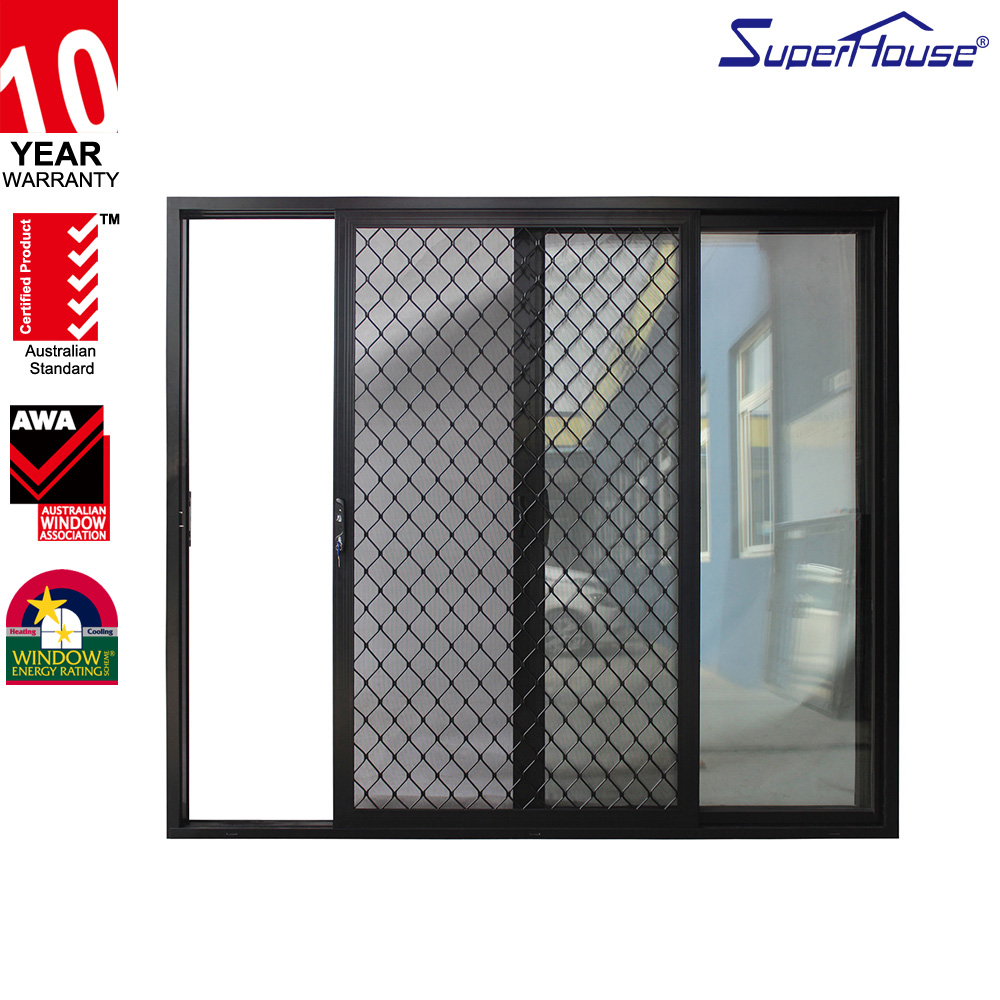

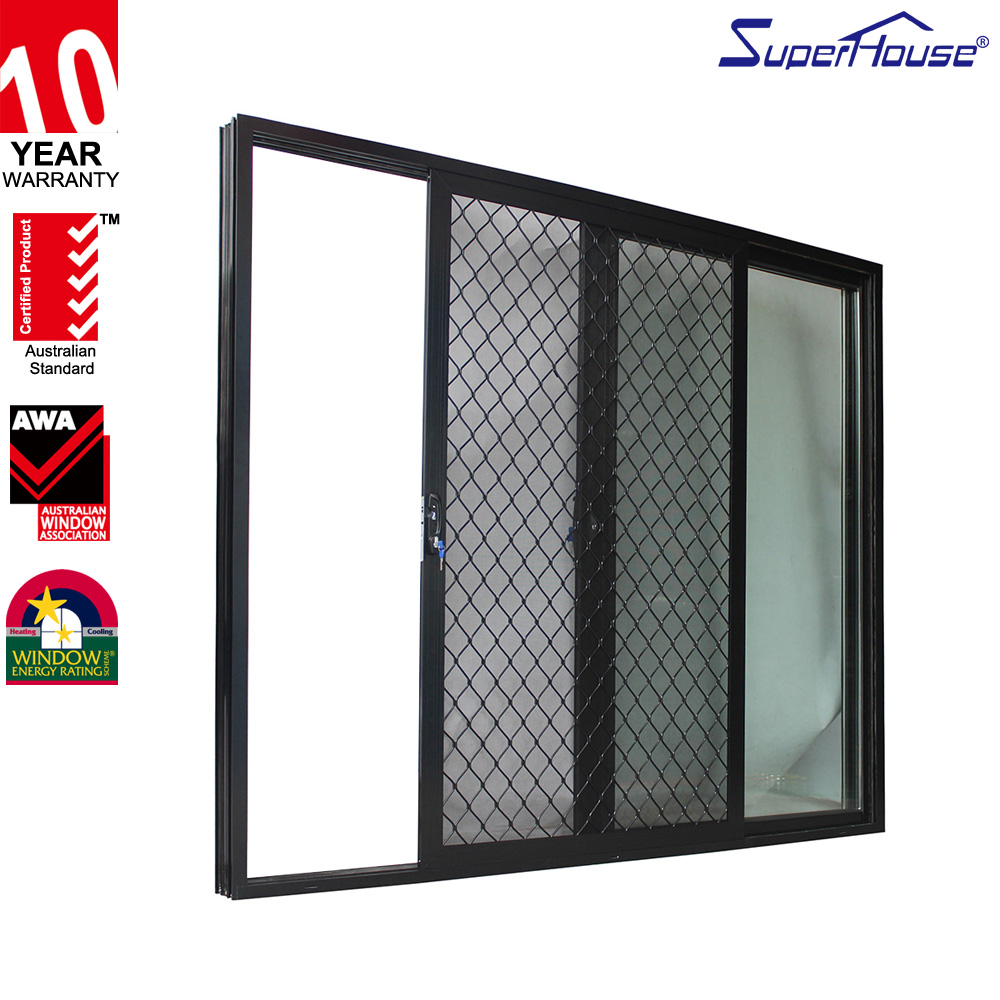

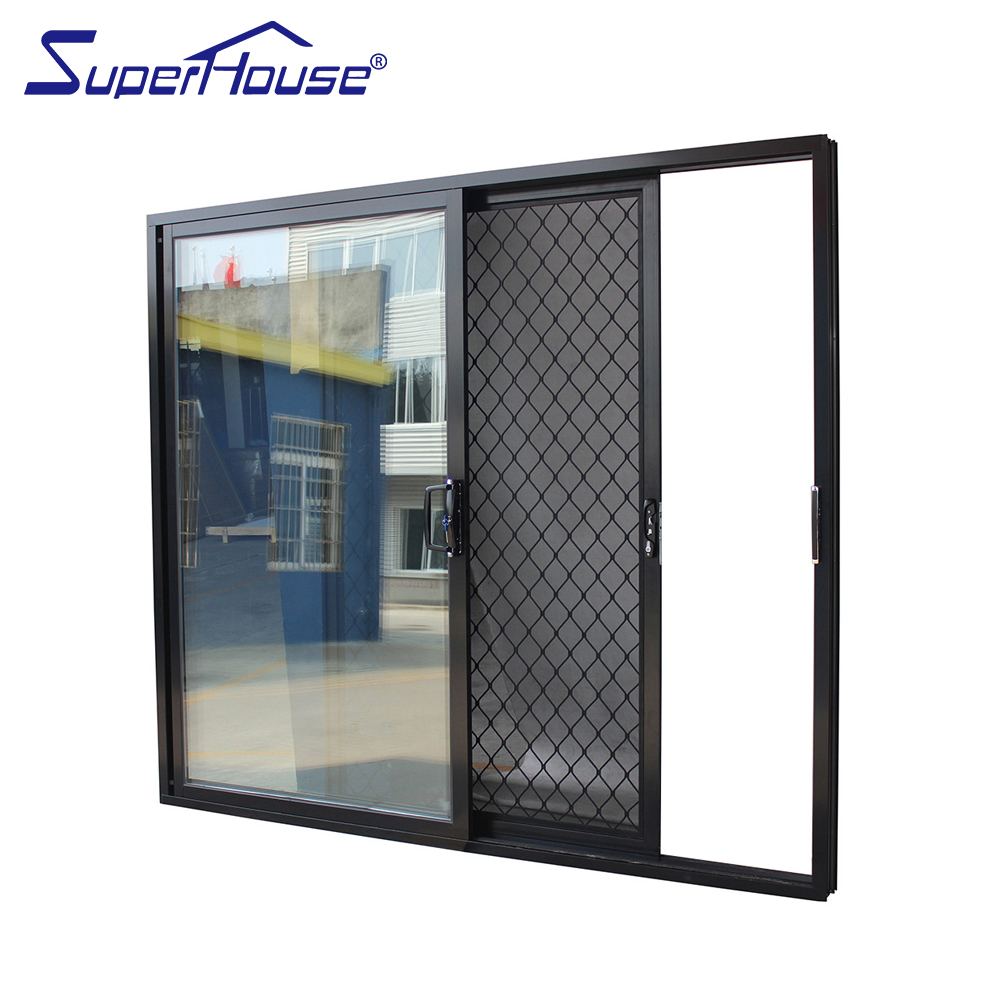

Australian Standard As2047 Modern Aluminum Sliding Double Glazed Tempered Glass Stainless Steel Security Screen Outdoor/Hotel
Product Description
Product Details

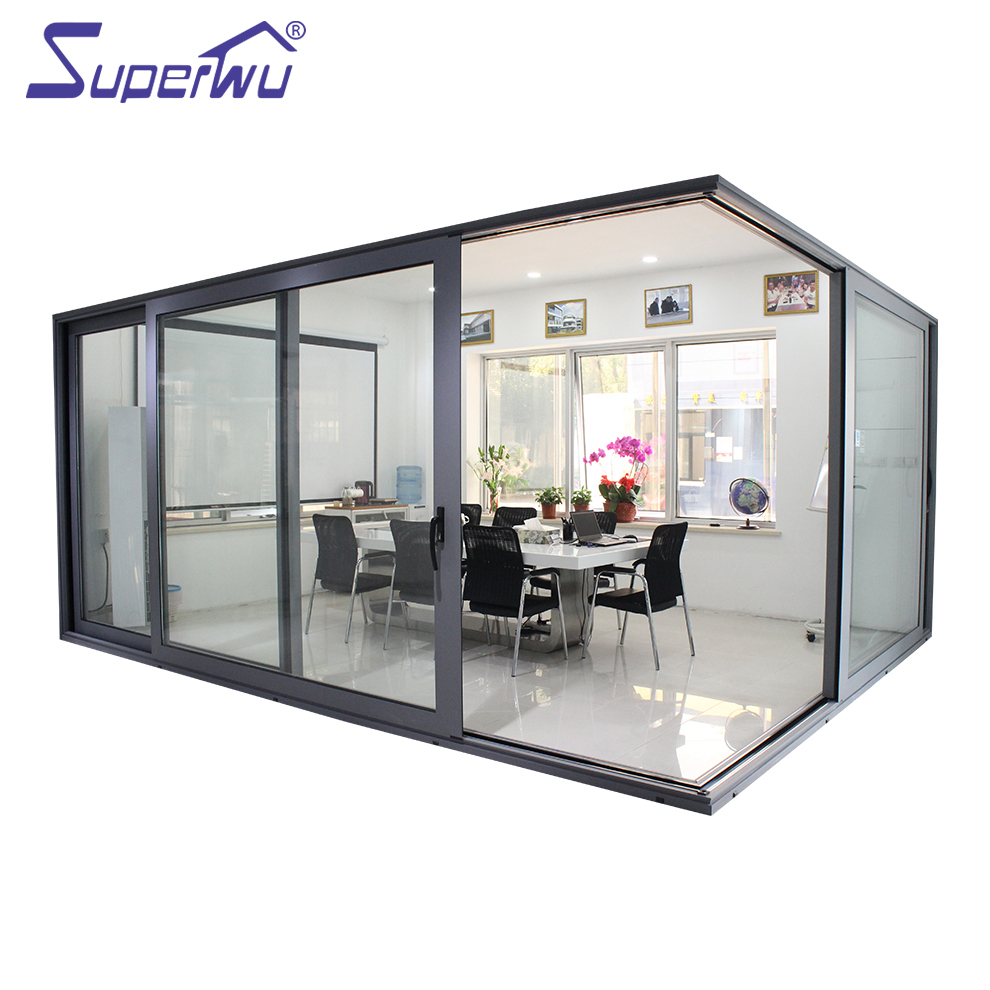

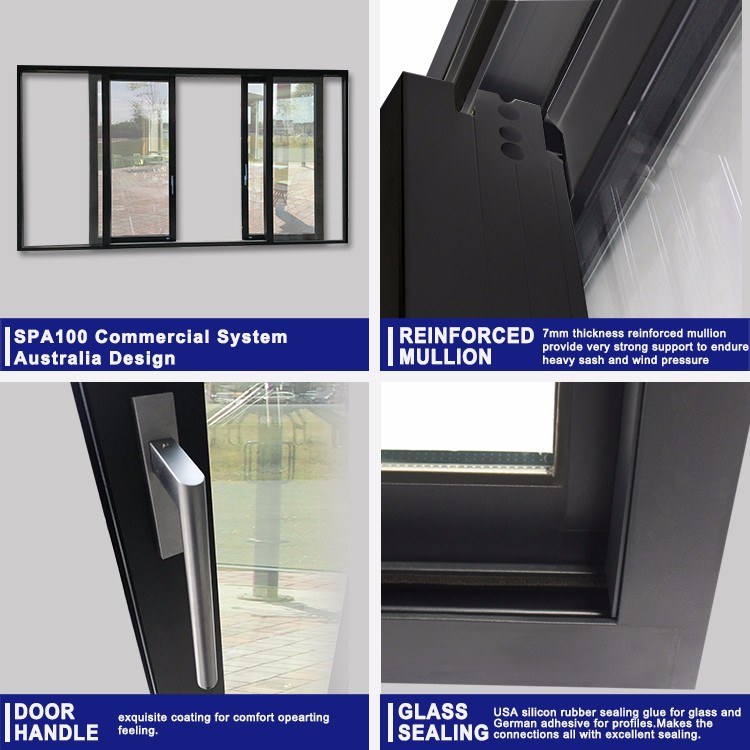

SP100 is a commercial system for windows and doors that boasts the optimum combination of safety and comfort. Fibreglass reinforced polyamide strips with ribs and/or hollow chambers guarantee high thermal insulation levels.
The system is available in a variety of aesthetic shapes to match the current architectural trends whilst offering all types of both inward and outward opening windows and doors. A double butt strip between the frame and vent and a lowered drainage ensure superior wind and water tightness. An additional asset of the system is the option to use it in combination with the Ventalis system.
The system is available in a variety of aesthetic shapes to match the current architectural trends whilst offering all types of both inward and outward opening windows and doors. A double butt strip between the frame and vent and a lowered drainage ensure superior wind and water tightness. An additional asset of the system is the option to use it in combination with the Ventalis system.
| Series | Commercial System |
|---|---|
| Name/Model | SP100 Sliding Door |
| Standard/Certificate | Comply with AS2047 / NFRC / NOA |
| Glass Standard | Comply with AS2208 / IGCC |
| Structural Glazing | Comply with AS1288 |
| Brand | Superhouse & SuperWu |

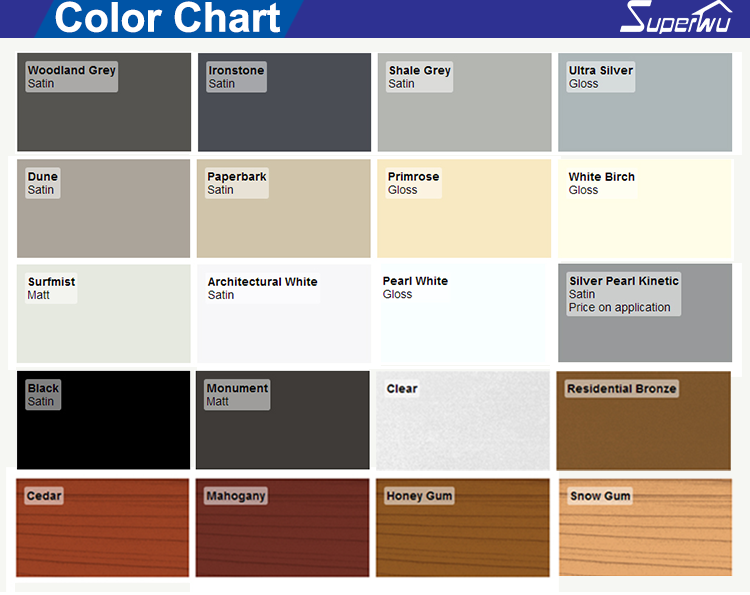

| Color Choice | Standard color: Matt black and silver white. Customized: Matt black, white, ultra silver, clear anodized. |
| Thermal Insulation | U value from 1.5 to 2.0 W/M²k |
| Window Rating | N6 |
| Sample Lead Time | 7 days |
| Powder Coating Thickness | 60-80 μ |
| Water Penetration | 450 pa |
| Ultimate Strength | 4500 pa |
| Air Infiltration | 75/150 |
| Extrusion Alloys | 6063-T5 profile with 2.0-3.0 mm thickness for doors; 6063-T5 profile with 1.4-1.6 mm thickness for sliding window |
| Hardware | Australia Doric with 7 years warranty; German brand with 10 years warranty |
| Surface Treatment | Powder coated meets AS 3715, Electrophoresis, PVDF, Anodizing, or Wood color |

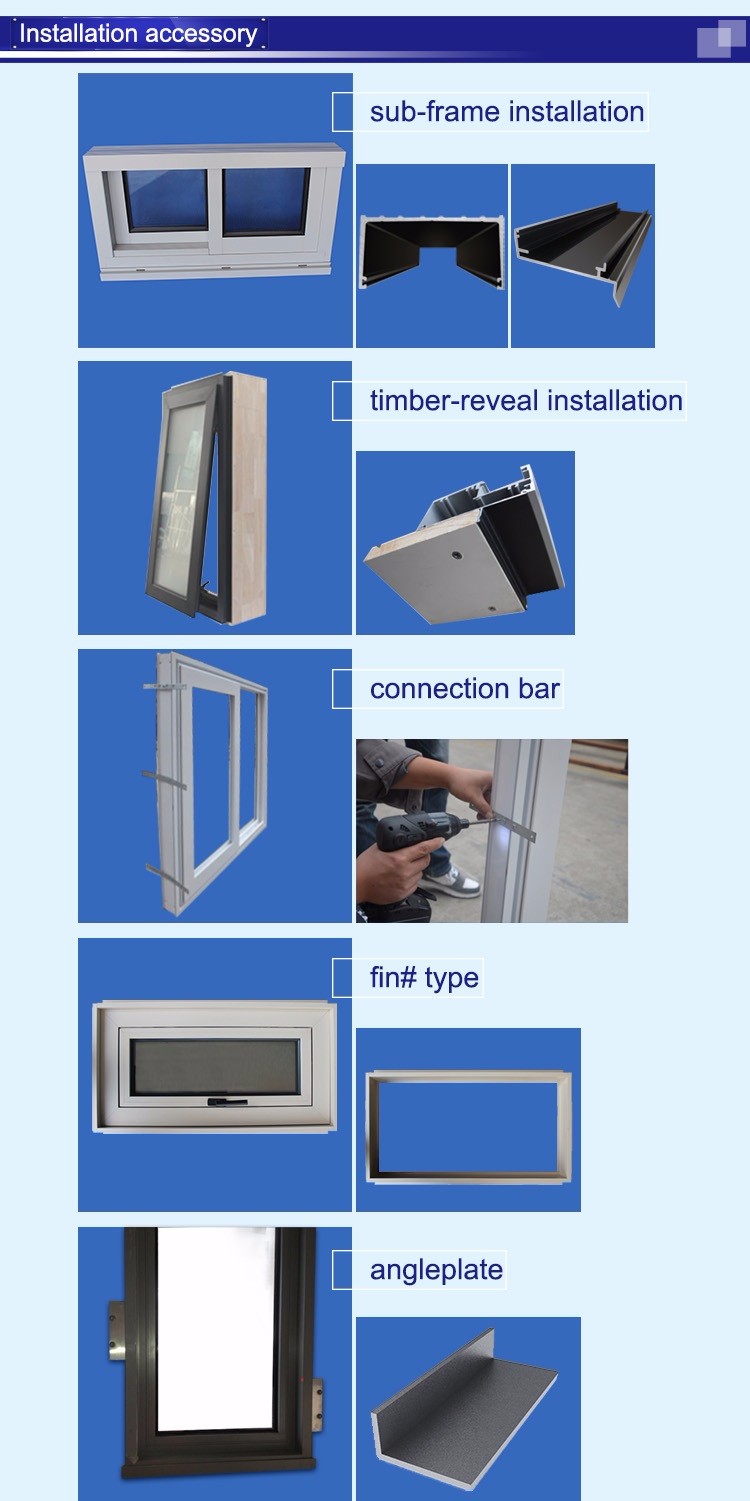

Installation
Certifications

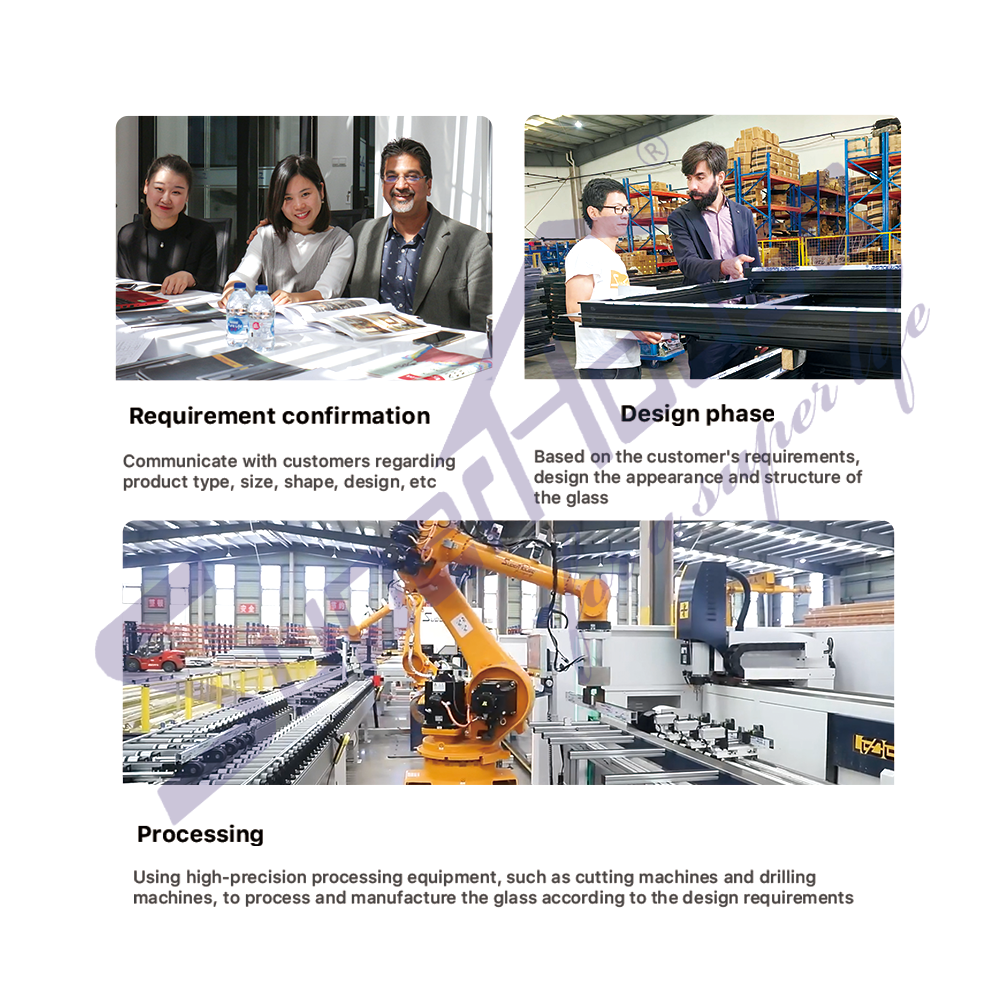

Factory
Project Showcase

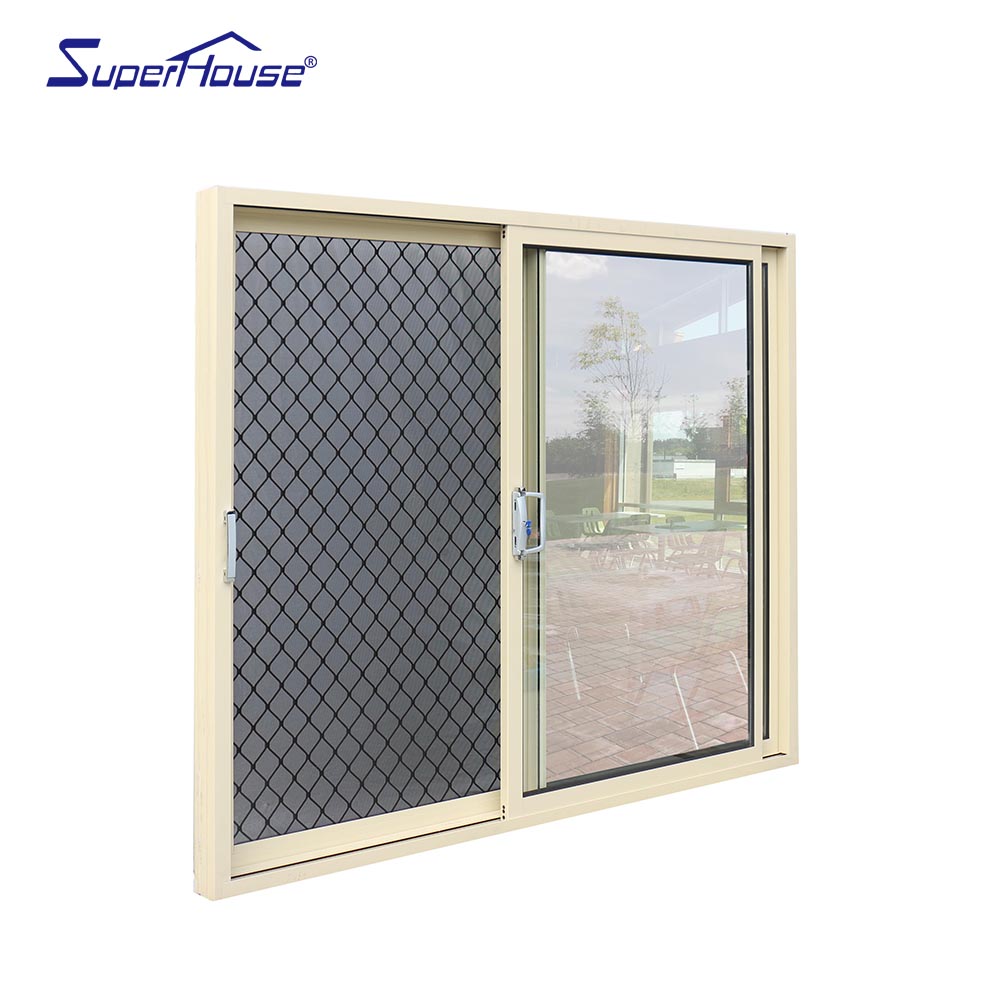

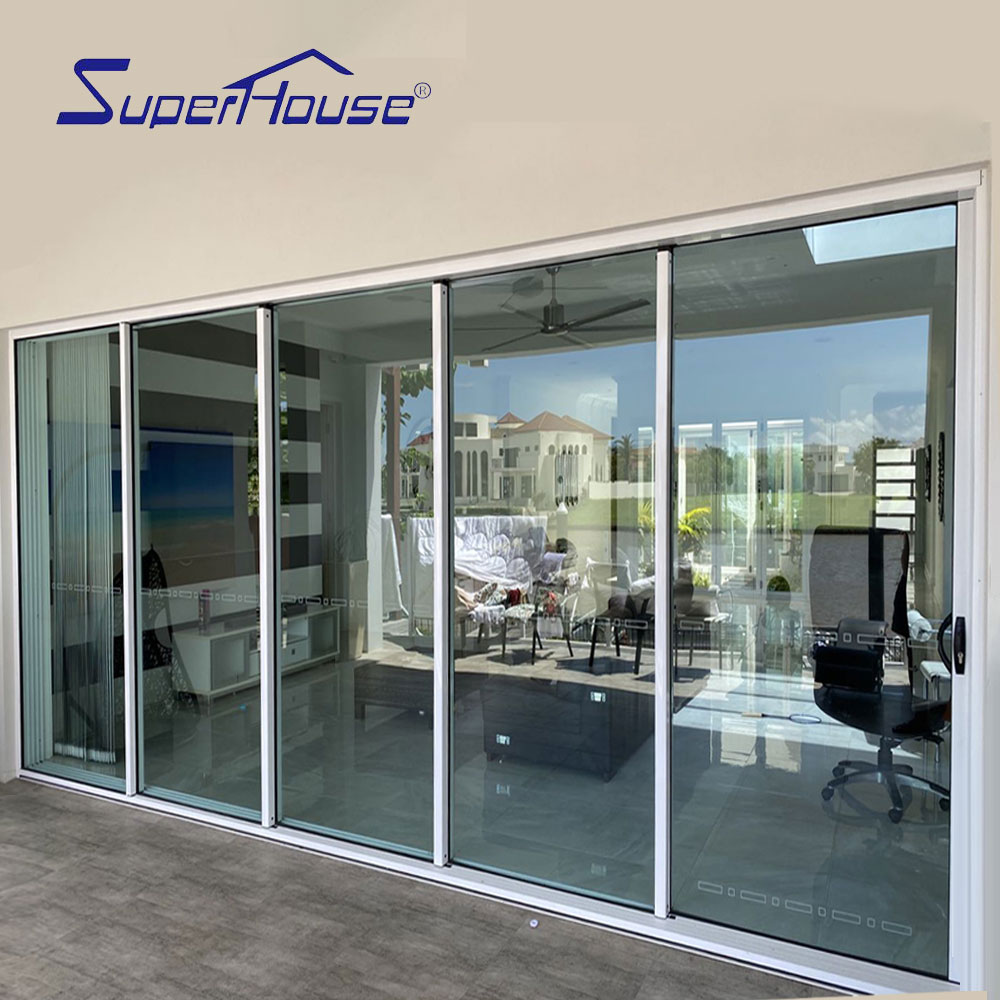

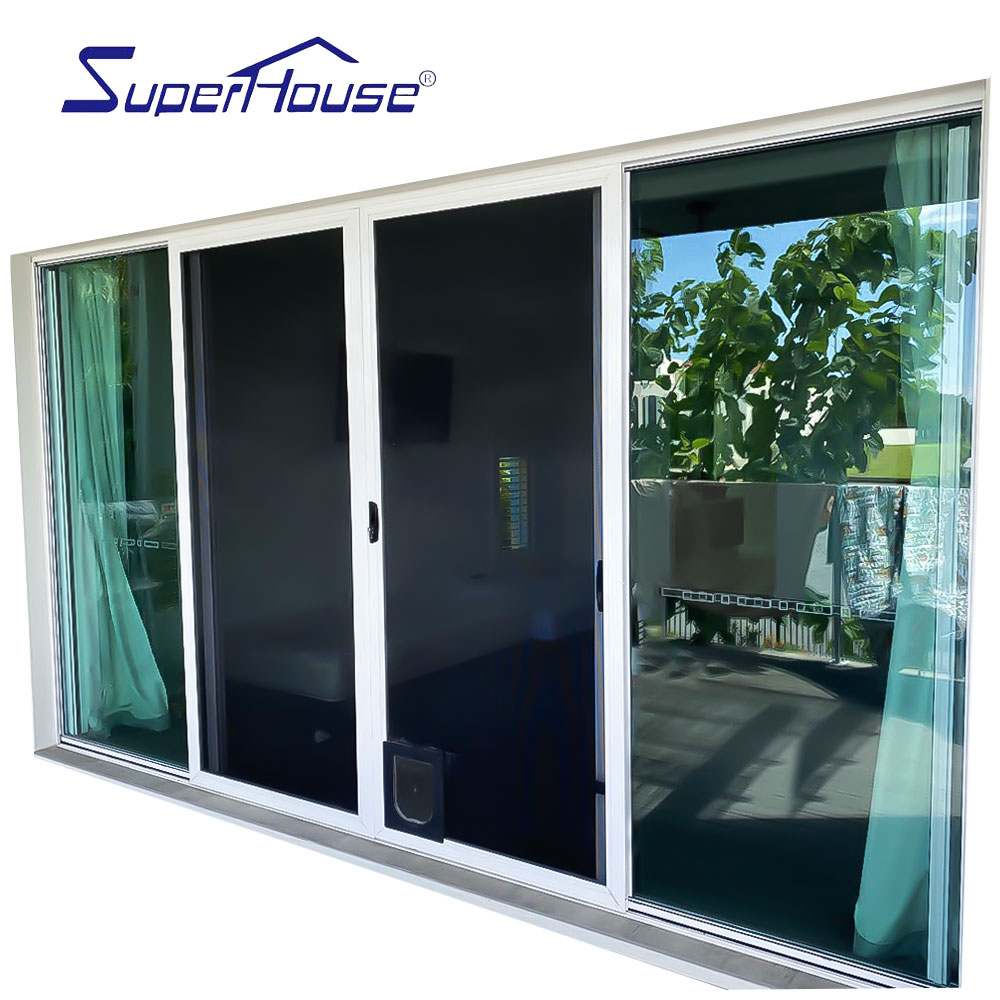

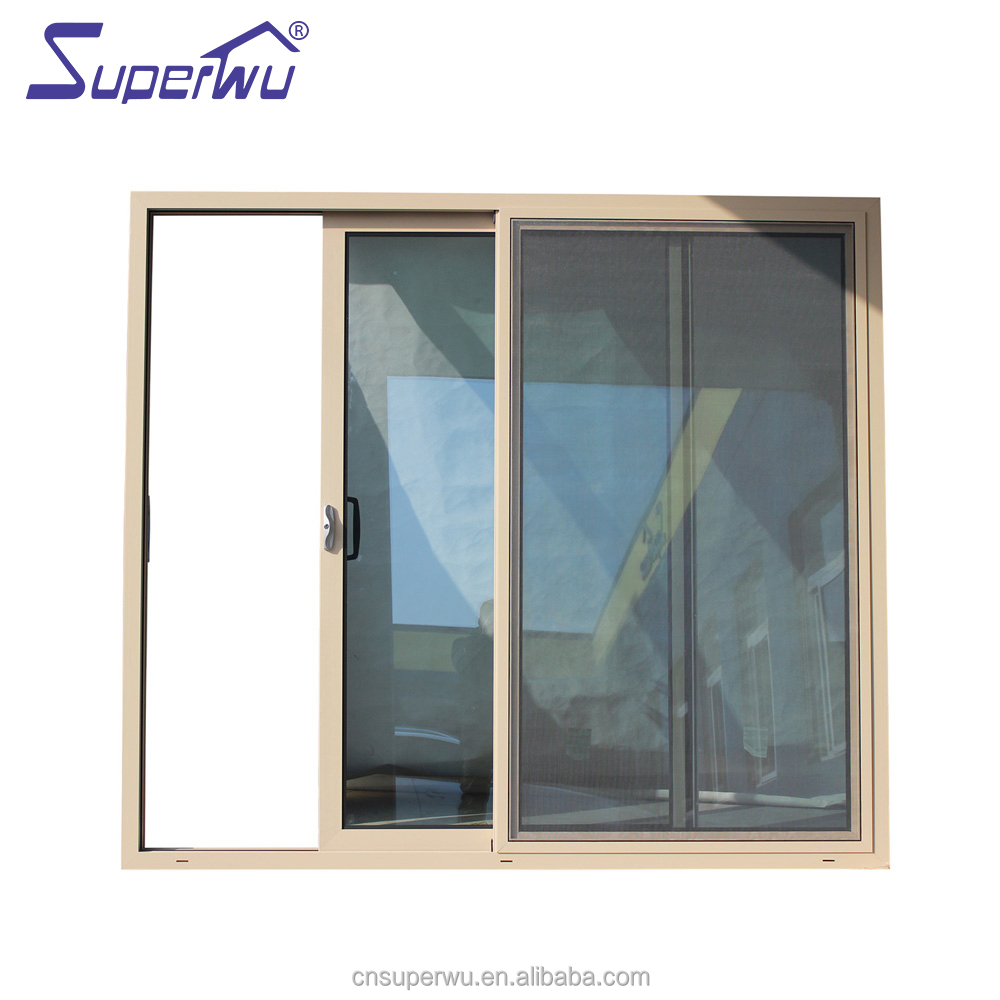

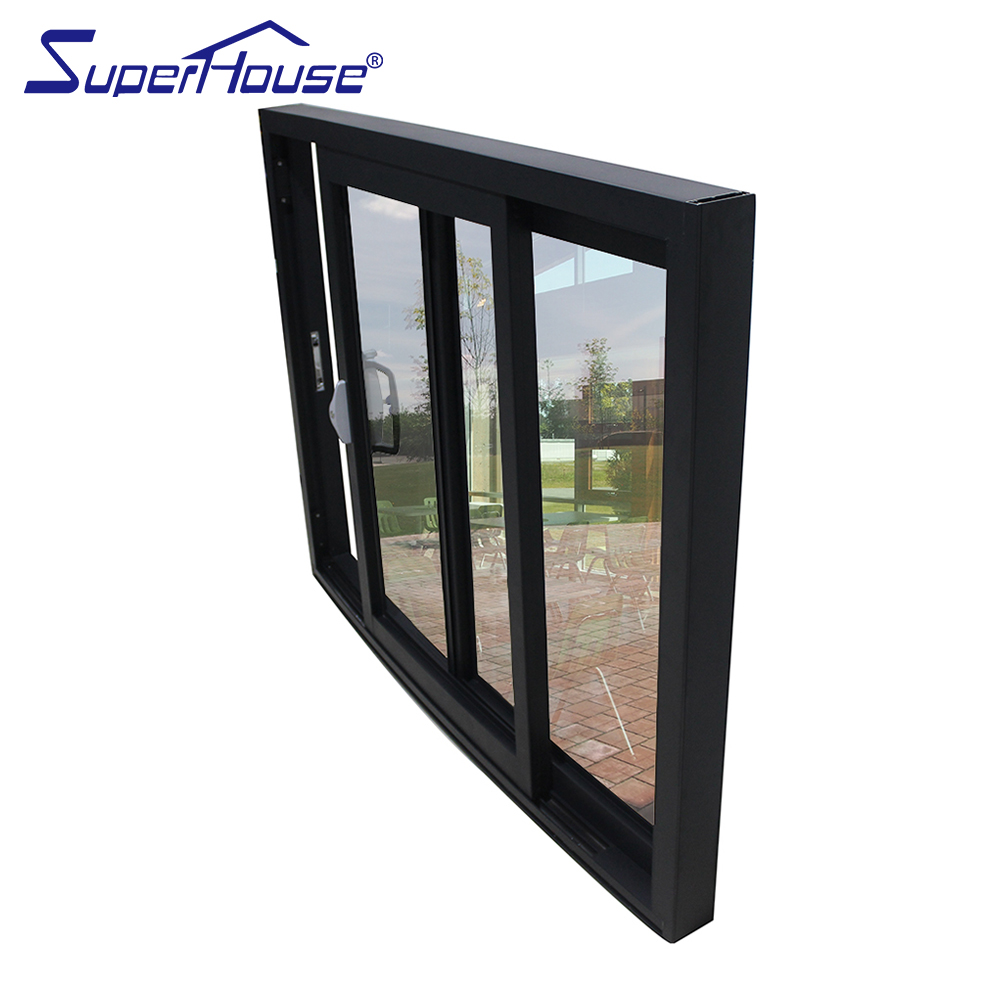

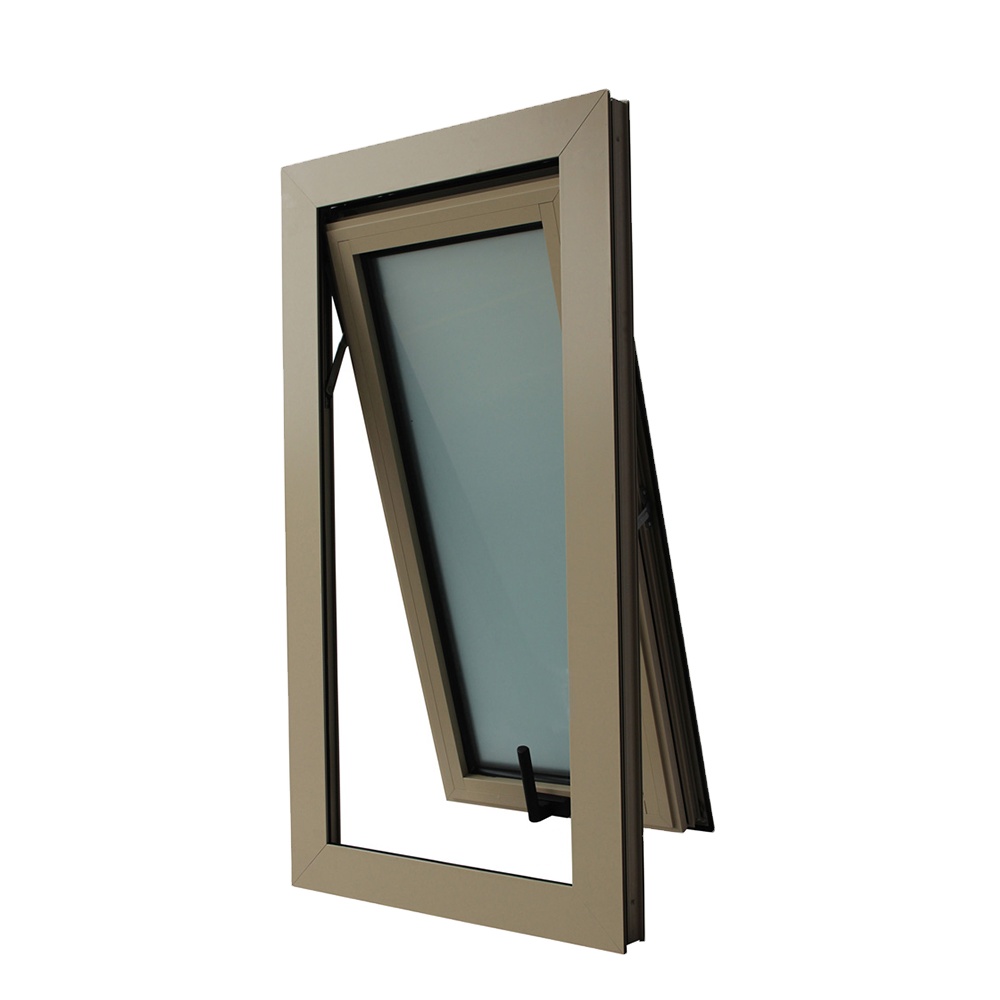

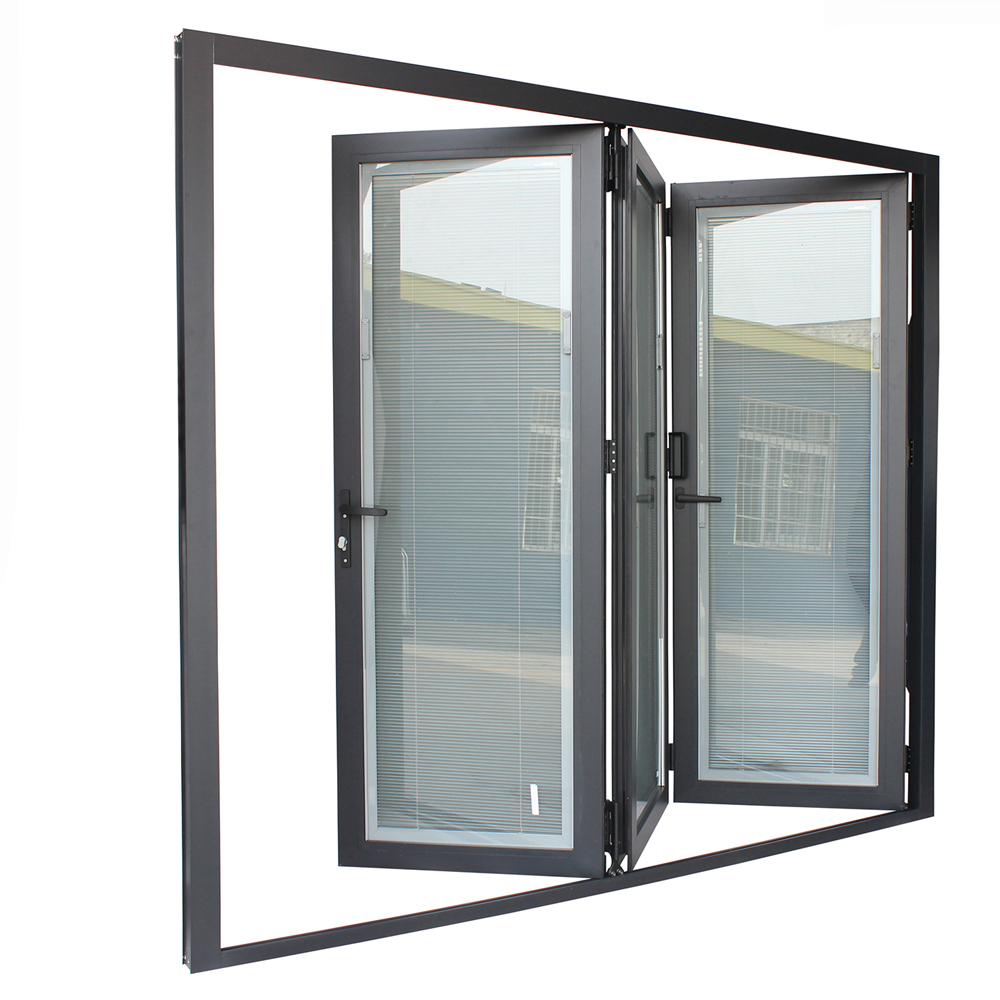

Other Products
Frequently Asked Questions
Q
What is your main product?
We can supply the window system (including profile, hardware, accessories, glass) as well as the finished products ready for installation.
Q
How can I know your price?
The price is based on the buyer's specific requirement, so please provide the following information to help us quote an exact price: 1) Shop drawing / window schedule showing dimensions, quantity, and type; 2) Frame color; 3) Type and thickness of glass (single, double, laminated, or other) and color (clear, tinted, reflective, Low-E, or other, with or without Argon).
Q

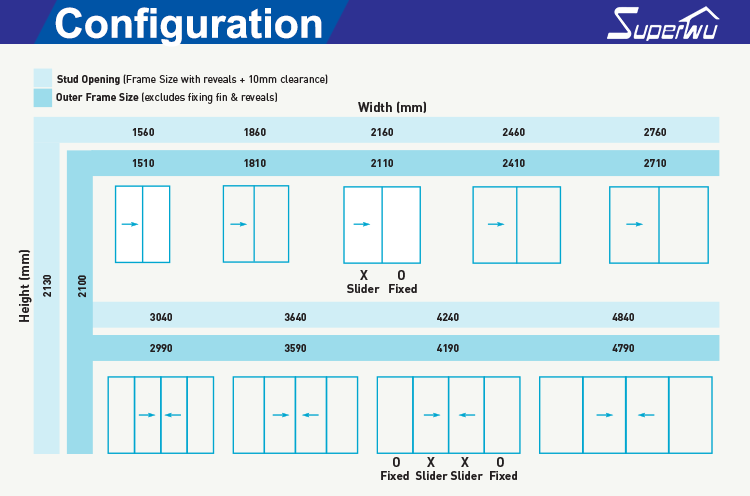

What is the standard size of your windows and doors?
Our product is CUSTOM MADE. We always manufacture windows and doors according to the buyer's dimensions.
Q
What is your delivery time?
38 days after deposit and drawing confirmed.
Q
What are your payment terms?
Normally, 30% - 50% of the total amount by T/T as deposit and balance before delivery. Irrevocable L/C at sight is also acceptable.
Q
What is your warranty? What do we do in case of problems?
A 7-year quality warranty is provided, covering non-fading and non-peeling frames, as well as hardware and accessories operating properly under correct usage. A 10-year warranty is provided for German hardware. In case of quality issues, replacement parts will be delivered via international courier immediately from stock, or within 10-15 days if material re-ordering is required.
