Engineered for coastal cyclone resistance, high-humidity salt spray protection, desert thermal insulation, and multi-point structural security. Explore our factory-direct collections certified for GCC, Australian, European, and American building mandates.
A comprehensive examination of metallurgical composition, thermal barrier insertion, glass hermetic sealing, and burglar-deterrent grille joinery manufactured in China's leading fenestration industrial cluster.
Unlike secondary remelt scrap utilized by low-tier extruders, export-grade Chinese window manufacturers deploy 100% virgin aluminium billets. Standard wall thickness complies with national and international fenestration codes (≥ 1.4mm for residential casements, ≥ 1.8mm–2.0mm for high-wind load commercial sliding systems). Yield strength exceeds 160 MPa, providing structural resilience against sustained gust pressures up to 4500 Pa (equivalent to Australian N6 and American ASTM E330 standards).
To interrupt metallic conductive heat pathways, the profile incorporates 24mm to 34mm multi-cavity Polyamide 66 reinforced with 25% chopped fiberglass (PA66 GF25). The thermal expansion coefficient of PA66 GF25 (2.3×10⁻⁵/K) exactly mirrors that of architectural aluminium (2.35×10⁻⁵/K), completely eliminating shear stress, thermal bowing, or delamination in harsh climates ranging from -25°C Andean alpine zones to +55°C Arabian Gulf deserts.
Grille architectures vary depending on design and performance intent: Internal Grilles (GBG - Grilles Between Glass) are suspended hermetically inside the dual/triple IG unit, avoiding dust accumulation and wind drag while preserving double-pane Low-E coatings. Simulated Divided Lites (SDL) adhere precision CNC-milled aluminum profiles to interior and exterior surfaces with internal spacer shadow bars, delivering historical colonial authenticity with modern energy performance.
| Grille Window System | Structural Profile Alloy | U-Factor (W/m²·K) | Acoustic STC (dB) | Security Level | Target Compliance Market |
|---|---|---|---|---|---|

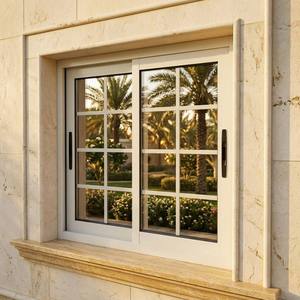

| RG110 Thermal Break Sliding | 6063-T5 (1.8mm Wall) | 1.6 – 1.8 | 36 – 38 dB | Class A Residential | Saudi Arabia (SABER / SASO), UAE, Qatar |
| Heavy Casement with 304 Screen | 6063-T6 (2.0mm Wall) | 1.4 – 1.6 | 38 – 42 dB | RC2 / Forced Entry | Australia (AS2047 / AS1288), New Zealand |
| Passive Triple Glazed Swing | 6060-T6 (2.2mm Wall) | 0.9 – 1.2 | 42 – 45 dB | RC3 Burglar Safe | North America (NFRC), Northern Europe (CE) |
| Extruded Security Bar Sliding | 6063-T5 (1.4mm - 1.6mm) | 2.2 – 2.8 | 30 – 33 dB | High Intrusion Barrier | South Africa, Kenya, Nigeria, South America |

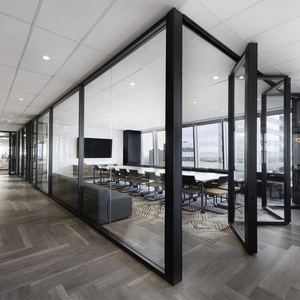

| Architectural French Partition | 6063-T5 (1.2mm - 1.5mm) | N/A (Interior) | 34 – 37 dB | Commercial Safety | Global Commercial / Hospitality Fitouts |
Global building energy codes, carbon footprint disclosures, and advanced smart-home integrations are reshaping how developers evaluate and import aluminium window packages from China.
Under the EU Carbon Border Adjustment Mechanism (CBAM) and LEED v4.1 credit demands, tier-one Foshan exporters have adopted renewable hydropower-smelted aluminium billets. With certified EPDs (Environmental Product Declarations), embodied carbon drops from 16.5 kg CO₂e/kg to under 4.0 kg CO₂e/kg aluminum, easing customs compliance and tax exposure.
Architects are replacing heavy traditional barred profiles with micro-sightline European muntins. Utilizing 15mm–20mm face widths with internal structural stiffeners, these profiles maximize visible transmittance (VT > 0.72) while delivering the crisp industrial loft aesthetic demanded in luxury villa and hospitality construction.
Procurement schedules now combine internal grille mullions with automated micro-roll screens and magnetic insect mesh. Concealed DC tubular motors integrate into central building management systems (BMS), activating automatic night-cooling venting or hurricane storm latches based on wind sensor readings.
High-risk coastal geographies (Florida Dade County TAS 201/202/203, Australian Cyclonic Regions C & D, Caribbean islands) require grille assemblies tested against large missile impact. Structural cast grilles are physically mechanically interlocked into window framing sub-chassis, absorbing 350 J projectile kinetic energy without catastrophic envelope failure.
Headquartered in Foshan—the world's preeminent fenestration and precision extrusion capital—DERCHI operates an integrated 180,000 m² smart production ecosystem. Ranked consistently among the Top 10 High-End Architectural Door & Window Brands in China, our team delivers turnkey OEM, ODM, and project-engineered packages to over 80 countries worldwide.
By uniting automated CNC profile machining centers, in-house robotic powder coating lines, automated IG sealing lines, and comprehensive fenestration structural laboratories under one roof, we eliminate intermediate processing markups, ensure exact batch-to-batch dimensional accuracy (±0.5mm), and uphold strict delivery dates for large-scale developments.
Procuring custom fenestration across overseas jurisdictions demands rigorous pre-shipment quality verification and heavy-duty protective packaging capable of enduring multi-week ocean transport.
Every production lot is subjected to in-house testing following ASTM E283 (air leakage ≤ 0.1 CFM/ft²), ASTM E331 (water penetration resistance up to 720 Pa cyclic pressure without egress), ASTM E330 (structural deflection limits L/175), and corner crimping torque shear tests. Test video logs and signed dimensional inspection certificates are supplied before cargo loading.
Window frames and glazed sashes are individually wrapped in protective electrostatic peelable film, wrapped in heavy EPE shock-absorbing pearl cotton, fitted with high-density reinforced corner bumpers, and sealed within fully enclosed, heat-treated fumigation-free ISPM-15 plywood crates. Crates feature bottom forklift skid bases for container de-stuffing without crane hazards.
Our dedicated shipping department works with global logistics carriers (Maersk, MSC, COSCO) to issue sea-waybills, certified Certificates of Origin (Form E, Form A, CO), Saber SASO registration numbers, and fumigation certificates. We offer flexible terms including FOB Foshan/Shenzhen, CIF destination port, or complete turnkey DDP delivered directly to your jobsite warehouse.
Direct technical answers addressing engineering validation, minimum order quantities, surface coating guarantees, and customs documentation for international procurement teams.
