Engineering White Paper · Global Fenestration Standards

Top 10 Aluminium Coated Windows Manufacturer & Factory

B2B Architectural Procurement Guide: Industrial Fluorocarbon (PVDF), Qualicoat Seaside Powder Coating, Thermal Barrier Integration, and Global Factory Audits for 2025–2030

Industrial Quality Standards

Precision Engineered Aluminium Fenestration Systems

In contemporary architectural engineering, the specification of exterior envelope systems demands rigorous metallurgical, chemical, and structural scrutiny. Coated aluminium windows have transitioned from baseline aesthetic fenestration to high-performance building envelope components. Selecting an elite manufacturer requires deep technical evaluation of primary virgin aluminium ingots (A00 Grade, 6063-T5/T6), automated multi-stage pre-treatment chemistries, electrostatic fluorocarbon (PVDF / 70% Kynar 500) application, and high-precision polyamide (PA66GF25) thermal barriers designed to resist structural deflection, saline atmospheric oxidation, and aggressive thermal shock.

180,000㎡
Smart Extrusion & Assembly Facility
25+
Years Engineering Experience
600+
Extrusion & Glazing Specialists
100+
Patents, CE, ISO9001 & AS2047 Tests
Factory Direct Inventory

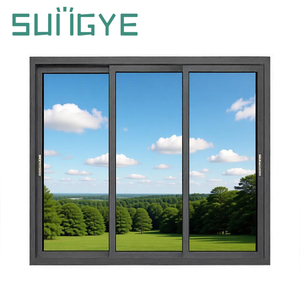

Featured Coated Aluminium Window & Door Series

Precision-manufactured with architectural powder coating and PVDF finishes, engineered for villas, commercial curtain wall facades, coastal estates, and energy-efficient retrofits.

Supplier Qualification Framework

Engineering Audit: What Defines a Top 10 Aluminium Coated Windows Factory?

International developers and commercial contractors cannot rely solely on sales presentations. True manufacturing authority stems from vertical metallurgical integration, automated robotic coating plants, and empirical adherence to global fenestration performance certifications.

1. Billet Metallurgy & Extrusion

Top-tier factories operate in-house homogenizing furnaces utilizing 100% primary A00 virgin electrolytic aluminium, strictly avoiding contaminated scrap melts. Profiles are extruded to dimensional precision compliant with EN 12020-2 / ASTM B221 with 6063-T6 or 6060-T66 specifications.

  • Tensile strength ≥ 215 MPa, Yield ≥ 170 MPa
  • Webster hardness ≥ 12 HW
  • Clean grain microstructure preventing profile blistering

2. Multi-Stage Pre-Treatment

The lifespan of coated aluminium hinges entirely on pre-treatment. Elite plants run automated 14-stage immersion or cascade spray lines using chromium-free zirconium-based titanium conversion or acidic deoxidation to ensure molecular bond adhesion for seaside and marine exposures.

  • Alkaline degreasing & neutralized de-smutting
  • Zero-rinse conversion coating ensuring chemical crosslinking
  • Adhesion verified by 1mm cross-hatch tape test (ASTM D3359)

3. Architectural Coating Application

Top 10 operations house climate-controlled, dust-free cleanroom vertical powder coating lines (Gema or Wagner Swiss electrostatic guns) alongside 3-coat/2-bake fluorocarbon (PVDF) lines capable of meeting stringent AAMA 2605 and Qualicoat Class 3 super-durable standards.

  • AAMA 2605 10-Year South Florida outdoor exposure durability
  • Delta E color variation < 5 units after 4,000h QUV-A testing
  • Minimum dry film thickness (DFT) 60–80μm (Powder) / 40μm (PVDF)

4. Thermal Break & Hermetic Assembly

To eliminate thermal bridging, certified window manufacturers utilize roll-crimped Technoform PA66GF25 (polyamide with 25% short-strand glass fiber) thermal struts rather than cheap poured-and-debridged urethane. Assembly tolerances guarantee structural shear strength under heavy cyclic gusts.

  • Transverse tensile elasticity ≥ 30 N/mm per EN 14024
  • Continuous dual EPDM synthetic rubber acoustic barriers
  • Assembly-level overall system U-factor Uw ≤ 1.1 W/(m²·K)
Coating / Technical Parameter Standard Architectural Powder Qualicoat Class 2 / Superdurable PVDF Fluorocarbon (70% Kynar 500) Hard Anodized Class 1 (Sealed)
Governing Standard AAMA 2603 / Qualicoat Class 1 AAMA 2604 / Qualicoat Class 2 AAMA 2605 / AS 3715 AAMA 611 / ISO 7599
Film Thickness 60 – 80 μm 65 – 85 μm 35 – 45 μm (3-Coat system) 18 – 25 μm (Electrochemical)
Neutral Salt Spray (ASTM B117) 1,500 Hours 3,000 Hours 4,000+ Hours (C5 Marine) 3,000 Hours (Pitting resistant)
Chalking & Color Fade Moderate (3-5 Years) Superior (10 Years South Florida) Extreme (20+ Years Maximum UV) Inorganic UV Stable (Non-Organic)
Architectural Applications Inland Residential Interiors Commercial Office Towers & Villas High-Rise Facades & Oceanfronts Industrial & High-Touch Railings
Procurement Suitability Budget Conscious Optimal Performance Coastal / High End High Hardness
Enterprise Manufacturing Strength

Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI)

Recognized consistently within the Top 10 premium door and window industrial brands in China, DERCHI operates out of a modernized 180,000 square meter intelligent manufacturing park in Foshan, Guangdong—the world epicenter of high-end aluminium extrusion and fenestration craftsmanship.

Backed by a workforce of more than 600 senior facade engineers, precision machinists, and QA inspectors, our production framework integrates German CNC multi-axis milling, automated four-corner crimping, and computerized acoustic hermetic glazing lines. We maintain over 100 invention, utility model, and industrial design patents, alongside international accreditations spanning CE, ISO9001, AS2047 (tested to Australia’s highest N6 cyclone rating), and UL-classified fire resistance standards.

Aerial view of the DERCHI 180,000 square meter production base in Foshan, China
Foshan Mega Base 180,000㎡ Intelligent Extrusion & Glazing Hub
Strategic Market Forecast

Future Procurement & Technological Trends in Aluminium Coated Windows

Global decarbonization mandates, evolving LEED/Passive House criteria, and volatile global shipping costs are reshaping how general contractors, facade consultants, and real estate developers procure architectural fenestration.

1. Circular Low-Carbon Aluminium

By 2026, over 40% of institutional tenders will specify low-carbon primary extrusions smelted using renewable hydro-power (producing < 4.0 kg CO₂ per kg aluminium). DERCHI is integrating third-party verified Environmental Product Declarations (EPD) to satisfy European Union CBAM and North American green rating requirements.

2. Ultra-Deep Thermal Insulation

With stringent building envelope regulations (e.g., German EnEV, Canadian Energy Star v5, and Title 24), fenestration must achieve overall system U-values under 0.8 W/(m²·K). This transition accelerates multi-cavity polyamides, aerogel core insulation inserts, and vacuum-insulated triple glazing units (IGUs) filled with 95% krypton or argon gas.

3. Building Automation Integration

Windows are no longer static elements. The future belongs to smart mechatronic assemblies featuring fully concealed electric chain actuators, magnetic Reed security sensors, electrochromic dynamic glass, and integrated motorized privacy louvers communicating directly with KNX and BACnet building management networks.

4. Factory Modular Consolidation

To counteract acute skilled-labor shortages on job sites across North and South America, developers are moving toward full-opening sub-assembly consolidation. Sourcing complete packages—exterior coated windows, hurricane sliding screens, cast entrance pivot doors, and smart garage shutters—in a single FOB/CIF container slashes landed freight expenses by 28%.

Technical Due Diligence

Frequently Asked Questions for Commercial Buyers

Direct technical, metallurgical, and logistic clarifications for project architects, structural engineers, and fenestration procurement teams.

What is the technical difference between AAMA 2604 and AAMA 2605 aluminium coatings?
The fundamental difference lies in weatherability polymer chemistry and testing stringency. AAMA 2604 specifies super-durable thermoset powder coatings (typically silicone polyesters or superdurable TGIC-free polyesters) that endure a mandatory 5-year South Florida exposure test with gloss retention ≥ 30% and color fade ΔE < 5.0. In contrast, AAMA 2605 mandates high-performance 70% fluoropolymer (PVDF, Polyvinylidene Fluoride / Kynar 500) resins requiring a full 10-year South Florida outdoor weathering test with gloss retention ≥ 50% and color variance ΔE < 5.0. For severe coastal marine environments (within 1,500 meters of the coastline) or multi-story curtain walls where repainting is impossible, AAMA 2605 is the requisite engineering specification.
How does Guangdong Dejiyoupin (DERCHI) verify wind load and water tightness compliance?
DERCHI operates certified structural mock-up testing chambers in our Foshan facility. Windows undergo four-tier testing: Air Infiltration (ASTM E283 / EN 12207), Static Water Penetration (ASTM E331 / EN 12208), Structural Performance under Uniform Deflection (ASTM E330 / EN 12210), and Dynamic Water Tightness (AAMA 501.1). Our products comply with Australia's AS 2047 standard up to the highest N6 design wind pressure classification (spanning serviceability pressures up to 3000 Pa and ultimate pressures up to 4500 Pa), guaranteeing zero structural disengagement during super-typhoon and hurricane conditions.
Can DERCHI engineer custom RAL colors and metallic anodized appearances?
Yes. Utilizing our automated computerized color-spectrophotometer matching kitchen, we produce exact color matches against physical swatches or international color standards including RAL Classic, RAL Design, Pantone, and NCS. We offer specialized finishes including sparkling mica metallic, dual-color extrusion (different internal and external colors separated by the polyamide thermal barrier), realistic deep-grain wood sublimation, and architectural matte micro-textures with gloss levels calibrated from ultra-matte 5% to semi-gloss 70%.
What are the typical factory lead times and Minimum Order Quantities (MOQ)?
For standard architectural finishes (traffic white, charcoal grey, anodized bronze) and existing profile dies, sample orders and custom prototypes carry a 12-day turnaround, with production runs completed in 25–35 calendar days following CAD shop drawing approval. Our flexible manufacturing lines allow low initial pilot batch MOQs of 30 square meters for custom residential villas, scaling up to thousands of square meters for commercial tower projects. Custom die extrusion for bespoke architectural profiles requires 10 days for precision tooling fabrication and sample sign-off.
How does the factory prevent corrosion and glass thermal stress fractures during ocean container freight?
Trans-oceanic shipping entails severe thermal cycling and hyper-saline humidity inside maritime containers. DERCHI executes a 5-layer export crating protocol:
  1. Full-surface non-staining protective PE surface masking on aluminium profiles;
  2. Impact-resistant high-density foam edge guards on all 4 corners;
  3. Moisture-barrier vacuum sealed thermal plastic enveloping desiccants calculated per container cubic volume;
  4. Fully enclosed, heat-treated ISPM-15 certified fumigated plywood crates;
  5. Internal steel bracket reinforcements preventing racking during crane hoist and ocean swell motions.
What glass configurations are paired with coated aluminium profiles for optimum thermal insulation?
Standard double-glazed IGUs comprise 5mm or 6mm tempered low-iron glass, a 12mm–16mm hollow aluminum or warm-edge Technoform spacer injected with 90%+ pure argon gas, and a high-performance magnetron sputtered double/triple silver Low-E coating. For cold northern or extreme equatorial climates, we configure triple-glazed dual-cavity units (e.g., 6mm Low-E + 12A + 6mm Clear + 12A + 6mm Low-E) paired with warm-edge composite spacers to suppress edge condensation, dropping the window Solar Heat Gain Coefficient (SHGC) to 0.22 while preserving clear visible light transmittance above 65%.
Are free CAD shop drawings, BIM families, and structural calculations provided before ordering?
Absolutely. Our internal engineering department of 30+ dedicated project draftsmen provides end-to-end structural modeling. Upon receipt of your architectural floor plans and window schedules, we generate full 1:1 scale DWG/DXF cross-sectional drawings, anchorage details, structural glass deflection stress calculations, and 3D Revit BIM families at zero charge prior to contract locking. This guarantees flawless coordination between the concrete rough opening and fenestration sub-frames.
How does DERCHI resolve on-site installation challenges and warranty claims overseas?
Each crate leaves the factory numbered and tagged to a specific opening code on the floor plan schedule. Comprehensive multilingual installation manuals and exploded hardware diagrams accompany every shipment. For commercial projects, our technical team conducts live high-definition video walkthroughs aligned with your local business hours (North America, South America, Middle East, Australia). Furthermore, all coated profiles carry an extensive 10-to-25 year factory surface warranty alongside a 10-year warranty covering IGU hermetic seal failure.

Engage Foshan’s Foremost Aluminium Coated Window Manufacturer

Submit your window schedules, architectural elevations, or custom specifications. Our senior fenestration engineers deliver comprehensive CAD shop drawings, acoustic & thermal simulations, and factory-direct pricing within 24 hours.

Get a Quote
