Engineered Aluminum Impact Door Configurations
Direct from our 180,000㎡ Foshan fabrication plant. Each unit is precision-engineered using thermal break structural billets, multi-point compression interlocks, and impact-laminated glass configurations certified to TAS 201, 202, 203, and AS2047 protocols.

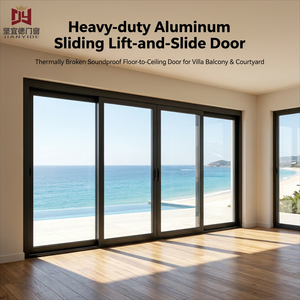

Custom Aluminum Lift & Slide Door Soundproof Compression System
- Profile Alloy: 6063-T6 (2.5mm Wall)
- Thermal Barrier: PA66 GF25 Polyamide
- Glazing Spec: 6mm + 12A + 6mm Laminated
- Design Pressure: DP70 (3350 Pa)

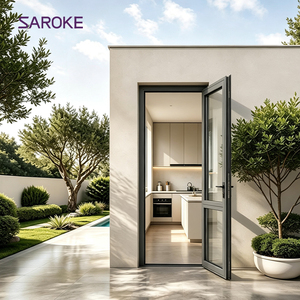

Aluminium Swing Casement Florida Hurricane Proof Patio Doors
- Standard Spec: Miami-Dade TAS 202/203
- Locking Device: 5-Point German Multi-Lock
- Impact Film: 1.52mm DuPont SGP®
- Finish Quality: AAMA 2605 PVDF Resin
Energy Saving Bifold Aluminum Hurricane Impact Double Glazed Doors
- Track Hardware: Heavy Duty 316SS Rollers
- Air Permeability: Class 4 (EN 12207)
- Water Tightness: 900 Pa Static Threshold
- Configuration: Up to 8-Panel Stacking

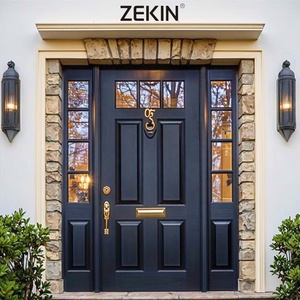

Custom Exterior Smart Hurricane Impact Pivot Entrance Doors
- Hinge Bearing: Hydraulic Bottom Pivot (500kg)
- Smart Access: Biometric / RFID Integration
- Core Structure: Insulated Aircraft Alloy Honeycomb
- Wind Load: 5500 Pa Structural Peak

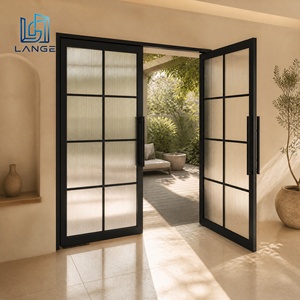

Hurricane Impact Thermal Break Casement Glass Entrance Door
- Extrusion Frame: 75mm Architectural Depth
- Glass Build: 8mm Tempered + 1.52PVB + 8mm
- Gasket System: Triple EPDM Vulcanized Seals
- Salt Spray Test: 3,000 Hours Neutral ASTM B117

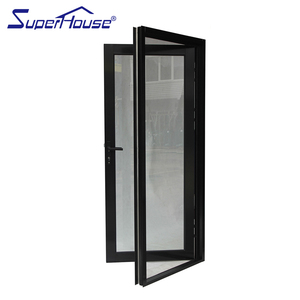

Thermal Break Windproof Triple Glazed Hinged Glass Doors
- U-Value Metric: 1.1 W/m²·K (Passive Standard)
- Glazing Unit: 6Low-E+12Ar+6+1.52PVB+6
- Hinge Rating: 304SS Heavy Duty Flag Hinges
- Acoustic Damping: Rw 44 dB Sound Attenuation
Luxury Frameless Impact Glass Aluminum Garage Doors
- Panel Thickness: 50mm Structural Box Section
- Impact Safety: ANSI Z97.1 & CPSC 16 CFR 1201
- Motorization: Integrated Smart Torsion Drive
- Wind Reinforce: Internal Steel Stiffener Ribs
Commercial Heavy-Traffic Impact Resistant Swing Doors
- Duty Cycle: 1,000,000 Repeated Swings
- Core Filling: High-Density Rigid PU Foam
- Impact Protection: Chequer Plate Tear Resistance
- Edge Sealing: TPE Continuous Weatherstripping
Why Global Importers & Facade Contractors Rely on DERCHI
As the brand of Guangdong Dejiyoupin Doors and Windows Co., Ltd. located in Shishan Town, Foshan, our manufacturing facility delivers end-to-end quality assurance backed by over 25 years of engineering leadership.
180,000㎡ Mega Manufacturing Hub
Located in Foshan, China's elite fenestration capital, our facility houses intelligent profile extrusion lines, automated CNC machining centers, and an integrated thermal break assembly plant staffed by 600+ industrial specialists.
HVHZ & Global Compliance Testing
Fully tested and certified to CE, ISO9001, AS2047 (N6 cyclone rating), and North American ASTM E1886/E1996 protocols. Every impact profile is verified against severe wind pressure, cyclical air-pressure loads, and missile impact impacts.
Turnkey OEM/ODM Engineering
From architectural CAD shop drawings and BIM parametric models to bespoke extrusion die tooling, we transform architectural sketches into high-performance certified fenestration packages without middleman markups.
Consolidated Ocean Export Logistics
Heavy-duty fumigated wooden crates with moisture-barrier wrapping and shock sensors guarantee zero transit degradation. Seamless FOB or CIF ocean logistics servicing Miami, Santos, Callao, Buenaventura, San Antonio, and Melbourne.
Engineering Verification: Hurricane Impact Performance Standards
When specifying impact fenestration for high-density coastal regions, engineering compliance determines building integrity and life safety. Below is our baseline structural performance comparison across primary global test standards.
| Evaluation Parameter | DERCHI High-Velocity Impact Door | Standard Non-Impact Aluminum Door | Compliance Test Benchmark |
|---|---|---|---|
| Large Missile Impact Test | Pass: 9 lb (4.1kg) 2x4 lumber @ 50 ft/s (15.2 m/s) | Failed: Complete penetration & glass shattering | ASTM E1886 / TAS 201 Level D |
| Cyclic Wind Pressure Loading | 9,000 inward/outward pressure cycles up to 100 PSF | Deformation & hardware blowout at < 25 PSF | ASTM E1996 / TAS 203 |
| Structural Wind Load (DP Rating) | Design Pressure DP65 to DP100 (Up to 4800 Pa) | DP20 to DP30 (Max 1400 Pa) | AAMA/WDMA/CSA 101/I.S.2/A440 |
| Interlayer Glazing Chemistry | 1.52mm - 2.28mm Kuraray SentryGlas® (SGP) or Solutia PVB | Monolithic float glass or unlaminated tempered | EN 12600 / ANSI Z97.1 Impact Safety |
| Extrusion Alloy & Temper | Primary Billet 6063-T6 / 6005-T5 (Web ≥ 2.5-3.0mm) | Recycled billet 6063-T5 (Web ≤ 1.4mm) | GB 5237.1 / ASTM B221 |
| Salt Spray Corrosion Resistance | 3,000 Hours PVDF fluorocarbon (AAMA 2605) | 500 Hours basic decorative powder coat | ASTM B117 Neutral Salt Spray Chamber |
Engineering Director's Note on SGP vs. Standard PVB:
For projects situated in coastal high-velocity hurricane zones (such as Florida HVHZ, Caribbean archipelagos, Northern Australian cyclone regions, and the South American Atlantic seaboard), our engineering department exclusively recommends Kuraray SentryGlas® (SGP) ionoplast interlayers. SGP provides 5 times the tear strength and up to 100 times the post-breakage rigidity of standard PVB, maintaining structural barrier closure even if both outer glass plies sustain missile fracturing.
Future Procurement Trends in Impact Fenestration (2025–2030)
Market dynamics, tighter building codes, and decarbonization mandates are reshaping how architects, developers, and commercial distributors procure architectural aluminum doors.
Stringent Coastal Codes Beyond Hurricane Zones
Building codes worldwide are adopting high-pressure cyclonic standards previously confined to South Florida. Rapidly urbanizing coastal sectors in Latin America, Southeast Asia, and the Middle East now mandate dynamic impact testing to resist extreme weather anomalies caused by climate volatility.
- Mandatory TAS 202 water infiltration compliance at ≥ 15% DP
- Adoption of projectile impact standards into national building bylaws
- Inclusion of forced-entry and security ballistic ratings
Thermal Performance Convergence with Impact Strength
Historically, hurricane impact doors prioritized massive structural rigidity over thermal isolation. The next decade mandates ultra-low U-values (U ≤ 1.2 W/m²·K) alongside DP80 structural ratings, requiring advanced multi-cavity polyamide thermal breaks and triple-laminated Low-E insulated glass units.
- PA66 GF25 reinforced thermal insulation barriers up to 34mm wide
- Warm-edge silicone foam spacers filled with 90%+ Argon gas
- Solar Heat Gain Coefficient (SHGC) optimization below 0.22
Minimalist Sightlines & Monumental Pivot Formats
Luxury residential and flagship commercial projects demand monolithic opening dimensions (up to 4m height × 2.5m single leaf width) with concealed sub-frame jambs. Meeting these wind pressures without bulky intermediate mullions requires internal carbon-fiber or high-tensile steel core stiffeners.
- Heavy-duty concealed hydraulic pivot systems rated up to 800kg
- Flush floor thresholds engineered with capillary self-draining gutters
- Concealed multi-point perimeter automated locking mechanisms
Frontier Technologies Powering DERCHI Impact Doors
Our closed-loop manufacturing model in Foshan integrates metallurgical controls, robotic 5-axis CNC extrusion machining, precision glass lamination, and automated multi-point hardware calibration.
6063-T6 Primary Billet Extrusion
We reject low-grade scrap re-melting. Our profiles are extruded exclusively from pristine A00 aluminum ingots with strict control of magnesium and silicon ratios, ensuring high ductility to absorb dynamic missile impact kinetic energy without fracture.
Tensile Strength: ≥ 245 MPa | Yield Strength: ≥ 205 MPa | Elongation: ≥ 10%
Autoclave Vacuum SGP Lamination
Our clean-room glass processing facility operates under class 10,000 particulate filtration. Automated roller presses followed by high-pressure thermal autoclaves (14 bar @ 135°C) eliminate micro-bubbles and delamination risks under coastal UV exposure.
Interlayer Bond Strength: ≥ 20 MPa shear modulus under dynamic cyclic fatigue.
AAMA 2605 Marine Fluorocarbon PVDF
Coastal doors face relentless saline air and harsh UV degradation. Our automated vertical electrostatic coating lines apply 3-coat, 2-bake 70% Kynar 500® fluorocarbon resin finishes delivering unmatched gloss retention and color stability.
Warranty Life: 20+ years against chalking, fading, cracking, and galvanic blistering.
Frequently Asked Questions for Project Specifiers & Importers
Detailed answers covering engineering validations, minimum order volumes, export packaging specifications, and local code compliance verifications.
What certifications do DERCHI aluminum impact doors hold? +
How does an impact door differ structurally from standard tempered glass doors? +
Can DERCHI manufacture custom dimensions and oversized architectural pivot doors? +
What is the typical lead time for custom OEM/ODM commercial batches? +
How do you guarantee safe ocean transit and zero moisture damage? +
Can we conduct a third-party factory inspection or live video audit? +
Accelerate Your Project with Turnkey OEM/ODM Impact Fenestration
Share your architectural door schedule, CAD drawings, or tender specifications. Our technical engineering division provides comprehensive structural review, wind-load assessments, and competitive factory-direct pricing within 24 hours.
Talk to a Fenestration Engineer
Direct communication with certified structural engineers, not commission agents.
Contact Us
