Massive automated manufacturing footprint in Foshan, China
Quarter-century of fenestration R&D and fabrication leadership
AS2047 N6, CE, UL fire-rated, ISO9001, FCC & 30+ patents
In-house structural engineers, QC auditors & project specialists
High-Performance Architectural Systems For Global Projects
Direct from our CNC extrusion and thermal assembly facilities: Explore commercial-grade, residential-grade, and severe-weather certified door and window systems tailored for international commercial builders and luxury estates.

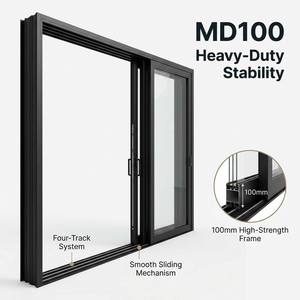

Triple Glazed Four Panel Sliding Door Four Track Thermal Insulated Energy Rated Draft-Proof Aluminum Door
- Quad-track recessed flush threshold
- Low-E Argon triple insulated glass units
Aluminum Alloy Frame Glass Bifold Window Vertical Folding Opening Soundproof Customized Size Wooden Crate Kitchen Bathroom OEM
- Gas-strut assisted vertical articulation
- Soundproof acoustic laminated glazing
AMJ Australian Standard Local Service Cheap Aluminum Price Double Glazed Villa Louvers Aluminium windows Jalousie Louver Window
- Cyclonic wind rating tested (AS2047)
- Dual-sealed aerodynamic ventilation blades
Wholesale Windproof Sealed Moisture-Proof Soft Close Quiet Aluminum Glass Sliding Door For Home Guest Bedroom
- Dual-direction hydraulic damper mechanism
- Whisper-quiet magnetic seal interlocks

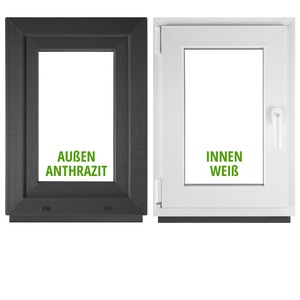

Basement Window DIN Left Outer Aluminum Anthracite White Interior Horizontal Double Glazing 32mm Heat Protection Sound
- 32mm heavy dual thermal boundary barrier
- Multi-axis tilt-and-turn German hardware

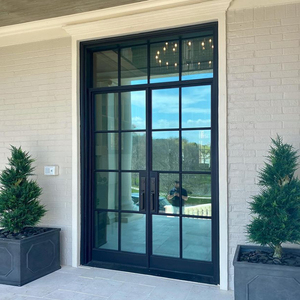

European Standard Iron Doors Interior Aluminium Steel Framed Swing Glass Door Crittall Style Wrought Iron Entrance French Doors
- Ultra-slim sightline Crittall-profile profile
- High-tensile perimeter security latching

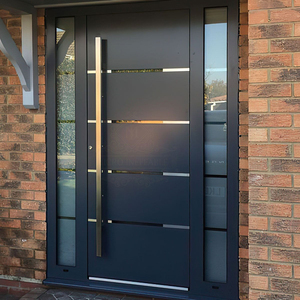

Luxury Modern Design Anti-Theft Outdoor Exterior Villa Aluminum Entry Front Door
- Cast-aluminum armor fascia + steel frame
- Multi-point motorized digital biometric lock

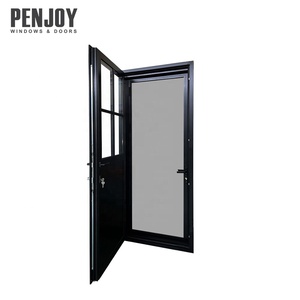

Thermal Break Aluminum Swing Door with Screen Window for Exterior Patio Custom Size
- Polyamide PA66 GF25 thermal break strip
- Integrated high-tensile stainless insect screen
Structural Engineering and Physics of Oversized Aluminium Apertures
Architectural mega-doors—spanning heights exceeding 4,000mm and panel spans up to 3,500mm—represent significant engineering challenges in contemporary fenestration. Sourcing OEM/ODM aluminum big doors requires a deep analysis of structural metallurgy, deflection dynamics, wind-load resistance, thermodynamic dissipation, and weight distribution across continuous roller or bottom-pivot assemblies.
1. Billet Metallurgy and Extrusion Deflection Metrics
In monumental sliding and pivot systems, wind-load pressure (positive and negative cyclical forces) creates bending moments that can lead to air infiltration, water leakage, or hardware binding if structural interlocks fail to satisfy strict deflection limits (typically L/175 under commercial codes or L/250 for high-wind hurricane and typhoon zones). DERCHI manufactures structural big door mullions utilizing primary A00-grade aluminum billets, strictly controlling silicon-to-magnesium ratios to yield 6063-T6 or 6060-T66 alloys with ultimate tensile strength exceeding 215 MPa and yield strength above 160 MPa.
| Engineering Metric | Standard Commercial Grade | DERCHI Monumental Big Door Specification | Testing Protocol |
|---|---|---|---|
| Alloy / Temper Specification | 6063-T5 Recycled Blend | Primary 6063-T6 / 6060-T66 Pure Ingot | ASTM B221 / EN 755-2 |
| Profile Wall Thickness | 1.4mm – 1.8mm | 2.5mm – 4.0mm Heavy Structural Extrusion | ISO 2859 Dimensional QC |
| Wind Load Deflection Limit | Class C3 (L/175 at 1200 Pa) | Class N6 / ASTM E330 (> 4500 Pa Cyclonic) | AS 2047 / ASTM E330 |
| Thermal Isolation Core | 14.8mm Standard PVC / PA66 | 24mm – 34mm Technoform PA66 GF25 Multi-Chamber | DIN 4108 / EN ISO 10077-2 |
| Single Panel Load Capacity | Max 180 kg – 250 kg | 600 kg – 1,200 kg Heavy-Duty Quad Rollers / Pivot | EN 13126-15 Cycle Durability |
2. Thermal Barrier Thermodynamics & Air-Tight Gasketing
Big door apertures encompass massive surface areas. Without advanced thermal decoupling, excessive solar heat gain (SHGC) or internal heat dissipation causes severe thermal bowing ("bimetallic effect"), where inner and outer aluminum faces expand at divergent rates under extreme temperature differentials. Our factory incorporates multi-cavity, low-conductive fiberglass-reinforced polyamide strips (PA66 GF25) mechanically rolled into knurled extrusion teeth. Combined with continuous, co-extruded cellular EPDM vulcanized gaskets, the assembled oversized doors maintain thermal insulation values of $U_w \le 1.1\text{–}1.4\text{ W}/(\text{m}^2\cdot\text{K})$ and air permeability exceeding Class 4 (EN 12207).
Emerging Global Sourcing Trends in Architectural Big Doors
Procurement directors, general contractors, and real estate developers face rapidly shifting regulatory mandates and design paradigms. Discover the five pivotal industry vectors driving contract specifications.
Decarbonization & Low-Carbon Aluminum
Global developers increasingly mandate Environmental Product Declarations (EPDs) and low-embodied-carbon billets smelted with renewable hydro-power. Procuring factories must verify recycled alloy trace-routes and Scope 1-3 emission ceilings to comply with LEED v4.1 and BREEAM sustainability standards.
Motorization & Building Automation (BMS)
As single glass panels push past 400kg, manual operation gives way to integrated brushless DC servo actuators, hidden mag-lev motors, and BACnet/KNX integration. Architects demand concealed floor operators and automated obstacle sensors that integrate seamlessly with smart residential automation.
Monolithic Zero-Threshold Drainage
Barrier-free living drives the extinction of stepped patio sills. Future-ready procurement favors invisible threshold systems where exterior linear continuous trench drains and stainless micro-ballast gutters channel storm water away while sustaining ADA-compliant floor continuity.
Engineering Trajectories Transforming Oversized Fenestration
From magnetic levitation track carriers to ballistic glass integrations, analyze how advanced OEM/ODM manufacturing tackles physics at the perimeter.
Magnetic Suspension Gliding
Permanent neodymium magnetic tracks counteract sash weight, reducing dynamic rolling resistance by up to 85%. Massive 1,000kg panels glide silently with fingertip actuation.
Multi-Axis Micro-Adjustment
Foundational ground settlement and building dead-load deflection can jam traditional doors. Our engineered pivot heads and bottom carriages feature 3D micrometer screw compensation (±5mm horizontal, vertical, and tilt).
Multi-Point Perimeter Locking
Oversized panels require perimeter compression to eliminate wind whistling and forced entry. DERCHI implements concealed shoot-bolt perimeter locking mechanisms with hardened mushroom cams tested against RC2/RC3 burglary classes.
Fluorocarbon PVDF & Marine Finishes
Pre-treatment with zirconium-based passivation and dual-coat Kynar 500 PVDF electrostatic spraying guarantees salt-spray endurance surpassing 4,000 hours (AAMA 2605 standard), providing robust resilience against corrosive coastal air.
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI)
Headquartered in Foshan, China's premier architectural aluminum industrial center, DERCHI is recognized among the Top 10 door and window brands nationwide. We operate an expansive 180,000㎡ intelligent fabrication campus equipped with multi-axis CNC machining centers, automated glass sealing lines, and comprehensive environmental testing laboratories.
180,000㎡
Smart Mega-Factory
600+
Skilled Personnel
AS 2047 N6
Highest Australian Rating
30+ Patents
Mechanical & Design R&D
Frequently Asked Questions on OEM/ODM Aluminium Big Doors
In-depth technical answers addressing import logistics, compliance verification, structural tolerances, and marine delivery for international contractors and developers.
What are the critical engineering thresholds for manufacturing oversized aluminum pivot doors? ▼
How does DERCHI guarantee structural compliance for cyclone and hurricane regions? ▼
What is the standard procedure and lead time for custom OEM/ODM drawing approvals? ▼
How are mega-dimension doors packed to prevent transit distortion and ocean corrosion? ▼
Can multiple architectural door types be consolidated into a single factory container? ▼
What hardware configurations and brands are integrated for operational longevity? ▼
Begin Your Custom Architectural Door Specification
Send your door schedules, CAD blueprints, or project requirements. Our dedicated bilingual engineering export team will deliver comprehensive shop drawings, structural thermal assessments, and factory-direct estimates within 24 hours.
