High-Performance Aluminium Internal Glass Door Series
Explore commercial-grade architectural configurations precision-machined with aircraft-grade 6063-T5 aluminum profiles, premium tempered safety glass, and concealed European hardware systems.

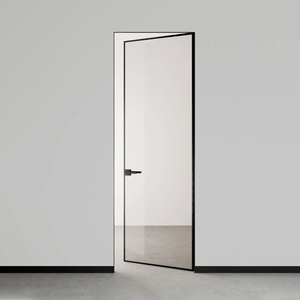

Minimal Frame Hinged Door Aluminum Glass Soft Close Tempered Door
- Slim Sightline: 16mm Ultra-Narrow
- Hydraulic Soft-Closing Damper
- SGCC/EN12150 Tempered Glass

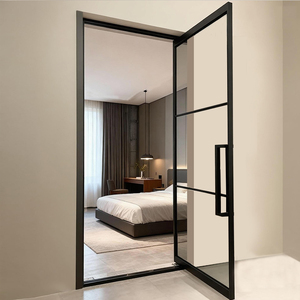

Apartment & Office Aluminum Partition Pivot Hinge Glass Door
- Heavy Duty Pivot: Up to 250kg
- Integrated Sound Gasket Seals
- 360° Floor Spring Mechanism
Modern Indoor Aluminium French Casement Glass Divider Doors
- Custom SDL Muntin Bar Grids
- Anodized & Qualicoat Finish
- Magnetic Latch Hardware
Hotel & Bedroom Aluminum Frame Swinging Glass Door with Lock
- Concealed Mortise Lock Body
- Privacy Fluted / Frosted Glazing
- Anti-Corrosive Anodized Jamb
Minimalist Wide Aluminum Glass Door for Kitchen & Wardrobes
- Ultra-Thin 1.8mm Wall Profile
- 3D Adjustable Invisible Hinges
- High-Transparency Low-Iron Glass
Zekin French Doors Room Partition SDL Swing Aluminum Doors
- NFRC & AS2047 Impact Compliant
- Modular Wall Connector System
- Heavy Industrial Grid Pattern
Narrow Frame Aluminum Glass Door for Interior Bathroom & Hotel
- 100% Waterproof Alloy Core
- Fluorocarbon Scratch-Free Coating
- Stainless Fasteners & Screws
Soundproof Double-Layer Glass Frameless Interior Door
- Sound Reduction Index: 38dB (Rw)
- Laminated Acoustic PVB Interlayer
- Drop-Down Automatic Bottom Seal
Technical Whitepaper: Precision Engineering Criteria for Custom OEM Internal Glass Doors
In modern corporate offices, high-density residential developments, and luxury hospitality villas, specifying custom OEM aluminium internal glass doors requires an in-depth understanding of material science, acoustic mitigation, structural rigidity, and machining tolerances. Unlike standard exterior fenestration where thermal breakage and water tightness dominate design considerations, internal door engineering centers around cycle durability, deflection resistance, optical clarity, acoustic isolation (Rw/STC rating), and precise frame integration into diverse interior substrates.
As a Tier-1 manufacturing partner, our factory utilizes primary architectural aluminum alloy EN AW-6063-T5 / T6, strictly avoiding secondary scrap remelt. The resulting structural profiles feature a minimal tensile strength of 160 MPa and a yield strength exceeding 110 MPa. This metallurgical purity guarantees zero torsional warpage across oversized panel spans up to 3,500 mm in height, allowing for ultra-slim stiles (as low as 16 mm sightlines) without compromising glass load capacity or structural safety under high cycle frequency.
| Engineering Metric | Standard Specification (Commercial Grade) | DERCHI OEM Custom Advanced Option | Compliance / Test Standard |
|---|---|---|---|
| Alloy Metallurgy & Temper | 6063-T5 Primary Extrusion (Web: 1.5mm - 2.0mm) | 6063-T6 Reinforced Core with Structural Ribs (2.5mm+) | ASTM B221 / GB 5237.1 |
| Acoustic Attenuation (STC/Rw) | Rw 28 dB - 32 dB (Single 8mm/10mm Monolithic) | Rw 38 dB - 44 dB (Double Glazed 6mm+12A+6mm Acoustic PVB) | ISO 10140-2 / ASTM E90 |
| Surface Coating Film Thickness | Powder Coating ≥ 60 μm (Qualicoat Class 1) | Fluorocarbon PVDF ≥ 35 μm / Hard Anodized Class 20 (≥ 20 μm) | AAMA 2604 / Qualicoat Class 2 |
| Mechanical Fatigue Cycle Test | 100,000 Repeated Open/Close Cycles | 300,000 Cycles with Heavy-Duty Hydraulic Dampers | EN 12400 Class 6 / ANSI BHMA A156 |
| Glazing Security & Safety | Fully Tempered Safety Glass (SGCC / CE Certified) | Laminated SentryGlas / Fluted / Low-Iron Acid Etched | EN 12150-1 / ANSI Z97.1 |
A critical engineering failure in low-grade commercial fit-outs is hinge sagging and acoustic flanking along perimeter perimeters. DERCHI tackles this via integrated 3D-adjustable concealed hinge pockets directly milled on 5-axis CNC machining centers from Germany, accompanied by co-extruded EPDM magnetic seals and drop-down mechanical thresholds that activate upon door leaf closure. This hermetic sealing mechanism decouples sound transmission paths, achieving acoustic attenuation indispensable for executive boardrooms, healthcare consulting suites, and luxury residential master bathrooms.
Procurement & Technology Trends Shaping Interior Glass Doors
Strategic insights for architects, commercial procurement managers, and developers preparing spec packages for next-generation interior projects.
Consolidated OEM Procurement & Prefabrication
Contractors are transitioning away from field-glazed doors and local subcontractors in favor of pre-hung, factory-tested, modular glass door assemblies. Sourcing fully engineered packages with prefabricated jambs, cut-to-measure tracks, pre-drilled hardware mortises, and integrated safety glass reduces on-site labor overhead by up to 45%, mitigating site defects and dimensional mismatches.
Ultra-Slim Visible Stiles & Micro-Pivots
The architectural trend of visual minimalism demands narrower sightlines down to 14mm-16mm without sacrificing load-bearing capacity. Floor-to-ceiling heights reaching 3,000mm to 3,500mm necessitate heavy-duty micro-pivot mechanisms embedded invisibly into the floor and upper reveal, eliminating traditional bulky door frames in favor of monolithic architectural planes.
Smart Dynamic Privacy & Sound Attenuation
Commercial interior fitouts are heavily adopting switchable PDLC smart glass and high-attenuation acoustic laminated panels integrated directly into slim aluminum extrusions. Specifiers increasingly demand composite doors featuring dual acoustic seals capable of transitioning from transparent open-office connectivity to instant private meeting isolation at the touch of a sensor.
Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI)
Headquartered in Foshan, China's elite manufacturing hub for architectural fenestration, DERCHI operates as an industry-leading manufacturer with over 25 years of specialized engineering experience. Recognized among the Top 10 premium door and window brands in China, our integrated manufacturing infrastructure spans profile precision extrusion, robotic CNC mitering, anodizing, powder coating, insulated glazing fabrication, and strict quality control.
Serving world-class residential towers, luxury villas, and commercial real estate across North America, South America, Australia, Europe, and Southeast Asia, our dedicated OEM/ODM division provides free shop drawings, parametric BIM models, and tailored crating ensuring zero deflection or transit damage during transoceanic shipping.
Frequently Asked Questions for B2B Importers & Contractors
Addressing critical engineering tolerances, export logistics, sample prototyping, and standard compliance for cross-border door orders.
What is the standard OEM/ODM sample prototyping lead time for custom door profiles?
For custom aluminum profile dies, new extrusion tooling design and sample die trials typically require 10 to 14 business days. Once the extruded aluminum profile sample is dimensionally verified, fully assembled door prototype samples (with selected glass and hardware) are completed within 7 days for physical client approval or lab testing before batch extrusion.
How does the factory prevent frame deflection and glass breakage on oversized leaves?
Doors exceeding 2,700mm in height are engineered with thickened profile walls (≥ 2.2mm - 3.0mm) and high-modulus structural corner-cleat crimping. We incorporate continuous concealed tie-rods and structural silicone bonding (Dow Corning / Sika) that unifies the tempered safety glass and aluminum framework into a unified, self-supporting composite slab.
Can you customize acoustic glass specifications to meet local commercial building codes?
Yes. We regularly fabricate double-glazed assemblies featuring acoustic laminated interlayers (PVB or SGP) and argon gas cavity spacers. Glass configurations can be tailored to meet ASTM E90 (North America), EN ISO 10140 (Europe), or AS/NZS 1288 (Australasia) standards to hit designated project Rw/STC ratings from 32dB up to 44dB.
What export packaging standard is utilized to eliminate ocean shipping damage?
Every internal glass door order undergoes a multi-layer protective packaging sequence: surface protective film applied to all metal profiles, corner foam protectors, heat-shrink polyethylene wrapping, and custom-built, heat-treated plywood crates (ISPM-15 compliant). Crated glass panels are cushioned on high-density EVA rubber dampeners with desiccant packs to prevent moisture fogging during trans-equatorial maritime freight.
Do you support consolidated container shipments with exterior doors and windows?
Yes. With our 180,000㎡ industrial footprint, clients regularly consolidate internal glass doors, entry pivot doors, minimalist sliding patio systems, architectural curtain walls, and garage doors in a single 40ft HQ container. This streamlines customs clearance and dramatically reduces container drayage and ocean freight costs per project unit.
What shop drawings and technical documentation do you deliver prior to production?
Before cutting any profile, our engineering department provides comprehensive CAD shop drawings detailing wall interface reveals, rough opening clearances, hinge centerlines, floor spring recesses, handle elevations, and glass fabrication tolerances. We also provide full hardware cut sheets and bilingual installation manuals for field contractors.
Accelerate Your Commercial & Residential Projects with DERCHI
Direct manufacturer pricing, uncompromised alloy quality, and dedicated architectural engineering support. Get in touch with our technical sales team for shop drawings, custom extrusion catalogs, and wholesale quote estimations.
