Acoustic Rated
Engineered Portfolio
Engineered Architectural Insert Systems
Explore our top-tier precision fenestration collection. Every unit features structural virgin 6063-T6 or 6060-T66 aluminum profiles, high-performance thermal insulation barriers, dual-pane Low-E assemblies, and integral privacy hardware.
Built-In Shading
Aluminium Casement Windows With Inserted Magnetic Blinds
Timber Composite

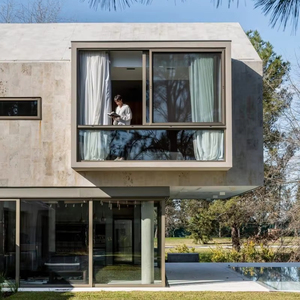

Sliding Aluminum Window With Insert Blinds & Timber Reveal
Commercial Grade
French Aluminium Horizontal Opening Ready-Made Office Inserts
High Efficiency
Double Glazed Sliding Aluminium Windows with Inserted Blinds
Hospitality Slim

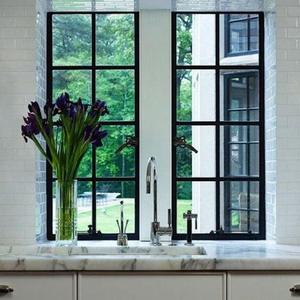

Modern Soundproof Low-E Inset Grill Slim Frame Aluminium Window
Hung System

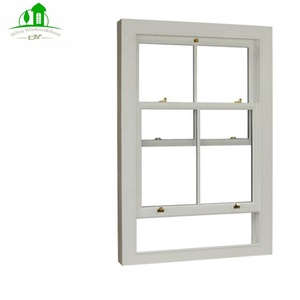

Vertical Up-and-Down Counterbalanced Soundproof Window with Grill Inserts
Hybrid System

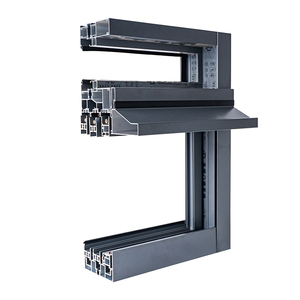

Multi-Track Sliding Casement Dual-Action Insert Envelope System
Authoritative Technical Analysis
Engineering Architecture of Modern Aluminum Insert Windows
Evaluating profile metallurgy, glass-cavity desiccants, and structural load mechanics to eliminate thermal bridging, condensation, and mechanical deflection across tall facades.
6063-T6 Structural Purity
We mandate primary billet aluminum with strict magnesium and silicon ratios, surpassing GB/T 5237 and ASTM B221 benchmarks. This guarantees superior anodizing consistency, micro-crack prevention during bending, and extreme resistance against maritime salt spray.
Polyamide Thermal Barriers
Equipped with technoform-grade PA66 GF25 (25% fiberglass reinforced polyamide) thermal break strips. This continuous composite barrier achieves linear expansion rates identical to aluminum alloy, preventing delamination while yielding U-factors down to 1.4 W/m²K.
Hermetic Blind Glazing
Inserted blinds are installed within an automated argon-filled insulated glass unit (IGU). Equipped with double warm-edge composite spacers and dual-seal polyisobutylene (PIB) plus structural silicone, ensuring complete moisture elimination and lifelong dust resistance.
Multi-Tier Acoustic Seals
Co-extruded vulcanized EPDM foam gaskets form triple-barrier perimeter seals. Coupled with asymmetrical acoustic PVB laminated glass layups (e.g., 6mm + 0.76mm PVB + 4mm + 12A + 6mm), sound transmission loss reaches up to Sound Transmission Class (STC) 44 dB.
Tier-1 Chinese Manufacturing Benchmark
Guangdong Dejiyoupin (DERCHI) Production Prowess
Operating from Foshan, China—the undisputed global epicenter of high-end aluminum extrusion—our smart infrastructure balances high-volume standard lines with custom-engineered architectural solutions.
180,000㎡
Intelligent Production Facility
25+
Years Fenestration Engineering
100+
Patents & Global Certifications
600+
Dedicated Technical Specialists
| Performance Metrics | China Direct (DERCHI Tier-1 Quality) | Standard Regional Fabricators | Legacy European Importers |
|---|---|---|---|
| Alloy Metallurgy & Purity | 100% Primary 6063-T6 / T66 Architectural Ingot | Recycled aluminum scrap mix (high porosity) | High quality primary alloy standard |
| Structural Wind Load Resistance | Up to 5000 Pa (AS2047 N6 / ASTM E330 Standard) | 1600 - 2200 Pa (prone to frame deflection) | 3500 - 4500 Pa (Certified European Class) |
| Glass Cavity Insert Blind Life | >50,000 magnetic cycles; zero vacuum failure | Frequent cord breakages; micro-leak seal failure | Reliable mechanisms, highly inflated unit costs |
| Acoustic Attenuation (STC) | STC 38 - 45 dB (Dual & Laminated Arrays) | STC 28 - 32 dB (Standard clear double-glaze) | STC 36 - 44 dB |
| Lead Times & Tooling Flexibility | 20-25 days; full custom extrusion die capability | 15-30 days; limited to local inventory dies | 12-18 weeks; rigid sizing architectures |
Strategic Foresight 2026-2030
Market Evolution & Commercial Sourcing Trends
Forward-looking architectural dynamics dictating how commercial EPC builders, villa developers, and facade contractors procure aluminum insert window products.
Trend 01: Intelligent Facades
Motorized Smart-Home IoT Integration
Manual magnetic sliders are transitioning toward low-voltage solar-charged and hardwired Zigbee/Matter-controlled blind motors. Modern smart facades automatically adjust insert louver angles based on ambient lux meters and solar gain algorithms, slashing HVAC energy expenditure by up to 28% annually.
Trend 02: Ultra-Minimalism
Concealed Sash & Micro-Bezel Frameworks
High-end architectural intent favors expansive glass-to-frame ratios. Sourcing is pivoting to structural flush inserts where the window frame conceals behind perimeter building stone or cladding. This requires zero-tolerance robotic aluminum miter-joint crimping to sustain heavy wind loads without sagging.
Trend 03: Circular Building
EPD Certified Low-Carbon Aluminum
Institutional developers across North America, Europe, and Oceania now mandate Environmental Product Declarations (EPD). Utilizing hydropower-smelted green aluminum billets and powder coatings free from volatile organic compounds (VOC) has shifted from an optional upgrade to a mandatory contractual qualification.
Procurement Engineering FAQ
Frequently Asked Sourcing Questions
Direct technical clarifications for international facade engineers, specifiers, and procurement officers navigating import clearances and structural compliance.
How do factory-sealed insert blind units prevent long-term fogging and seal degradation?
Fogging in insulated glass with integral blinds is primarily caused by dew-point failure and plasticizer outgassing from cheap slat paints. At DERCHI, blinds are assembled inside clean-room conditions with zero VOC coatings. Desiccant-filled molecular sieves are fully integrated within the warm-edge spacer perimeter, backed by primary polyisobutylene (PIB) extrusion and structural silicone edge seals. Every completed unit undergoes vacuum bubble leak detection and argon concentration validation, maintaining humidity thresholds below -40°C dew point.
What international testing standards and certifications cover export shipments?
Our systems are certified according to Australia's AS2047 (reaching the top N6 structural cyclonic rating) and AS1288 glass compliance. For North America, units undergo testing against AAMA/WDMA/CSA 101/I.S.2/A440 for air infiltration, water resistance, and structural integrity, alongside UL fire ratings. For Europe and South America, CE certifications and ISO9001 quality management protocols apply. We supply verified laboratory test reports directly to client facade engineers prior to container dispatch.
Can custom opening dimensions, structural arch forms, and specialized RAL colors be produced?
Yes. Custom architectural design accounts for over 70% of our export output. Our engineering facility utilizes CNC bending technology to shape seamless circular arches, gothic lancets, and trapezoids without compromising profile internal chamber wall thickness. Surface finishes span AkzoNobel powder coatings matching any RAL color code, fluorocarbon (PVDF) 3-coat marine systems, and Italian thermal-transfer sublimation wood-grain finishes.
How are aluminum insert windows packaged and secured for multi-leg ocean transit?
Export shipments utilize multi-layer protective packaging: 1) Blue PE low-tack protective film over all aluminum profiles; 2) Impact-resistant high-density foam corner protectors; 3) Heavy gauge air-cushion bubble wrapping; 4) Fumigation-free plywood crates reinforced with interior steel strap anchoring. Units are packed upright with rubber spacers between glass panels to resist container vibrations during intermodal transit.
What engineering deliverables are provided to support site installation?
Upon receipt of architectural schedules or site opening measurements, our engineering team prepares full CAD shop drawings showing head, jamb, and sill flashing details, wind-load anchor placement points, and timber reveal integration schemes. Each fabricated window frame and sash is tagged with unique barcode identifiers corresponding to floor elevation plans. Full video installation guides and remote engineering support are provided across client project time zones.
Consult Our Fenestration Engineering Group
Send your window schedule, CAD floor plans, or project bill of quantities (BOQ) to our senior engineering estimators. We deliver technical proposals, thermal simulations, and FOB/CIF freight estimates within 24 hours.
