Top-Tier Aluminum Fabrication Windows for High-Performance Architecture
Direct from Foshan's premier smart fabrication facility. Engineered with virgin 6063-T5/6060-T66 primary aluminum alloys, polyamide PA66 GF25 thermal isolators, and multi-point German security hardware.
Heavy Duty 86 Series Aluminum Casement Window, Large Section 798 Type Window Frame for Villa & House
Profile Depth: 86mm / 2.0mm thickness
Glass Configuration: 6mm + 12A + 6mm Low-E Argon
Wind Pressure Rating: Up to 5.0 kPa (Class 9)
Custom Soundproof Aluminium Frame Windows for Office and Home Thermal Insulation
Acoustic Rating: Rw ≥ 42 dB sound attenuation
Thermal Barrier: Multi-cavity Technoform PA66
Finish: AkzoNobel Interpon fluorocarbon powder
Wholesale Custom Finish 6000 Series Alloy Extruded Aluminum Sliding Window Frame Anodized/Powder Coating
Alloy Grade: 6063-T6 / 6005-T5 architectural extrusion
Fabrication: CNC miter cutting, bending & seam welding
Roller System: Stainless steel tandem bogie rollers

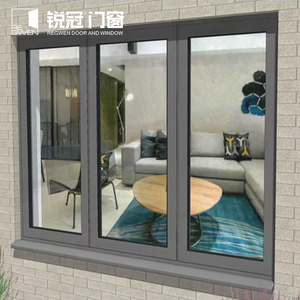

RG65 Customized Double Glazed Thermal Break Aluminum Casement Window Energy Efficient Factory Direct
Uw Transmittance: Down to 1.3 W/m²·K
Gasket Design: Co-extruded EPDM triple-sealing barrier
Corner Assembly: Hydraulic crimped corner cleats with glue
Custom Modern Modern Aluminum Glass Sliding windows with Inner Electrical Roller Shutter
Automation: Somfy tubular motor with RF remote & Smart-Home
Shutter Slat: Polyurethane foamed aluminum thermal slat
Burglary Resistance: RC2 security grade classification
Custom Villa House Project Window and Door Thermal Break Insulated Window Soundproof Double Glazed
Glazing Matrix: 5mm + 20A + 5mm Warm-Edge Spacer
Frame Structure: Dual-extrusion isothermal plane design
Water Tightness: 700 Pa static pressure certified

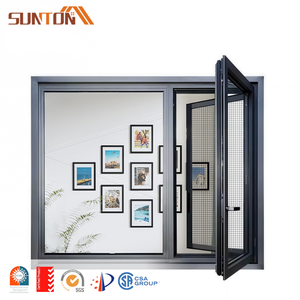

Exterior Sound Proof Aluminium Profiles Window Design French Style Black Aluminum Frame Double Glass
Style: Ultra-slim French mullion grid layout
Surface: Matte black anodized 25μm thickness (AAMA 611)
Locking: Concealed multi-point mushroom head cam espagnolettes
Double Hung Windows Double Pane Windows of Aluminium Casement Windows Custom Aluminum Double Hung
Balancing Mechanism: Heavy-duty constant force spring balances
Sash Operation: Tilt-in for effortless interior maintenance
AAMA/CSA/WDMA: Tested for hurricane impact and air leakage
Global Aluminum Window Procurement Trends: 2025–2030 Strategic Whitepaper
The international fenestration marketplace is undergoing a profound paradigm shift driven by stringent carbon accountability legislation, evolving building envelope standards, and the industrial transition toward prefabricated, high-precision envelope systems. Professional specifiers, real estate developers, and façade structural consultants no longer evaluate window systems purely on initial cost per square meter. Instead, procurement strategies are overwhelmingly governed by Lifecycle Carbon Footprint (Embodied vs Operational Carbon), Whole-Assembly U-factor Integrity, and Supply Chain Traceability.
As governments throughout North America, Europe, Oceania, and Latin America mandate net-zero building directives (such as the EU Energy Performance of Buildings Directive recast and ASHRAE Standard 90.1 updates), China's premier aluminum window manufacturers have evolved from simple manual fabrication shops into world-class digital machining hubs. In this changing ecosystem, Chinese factories lead the integration of secondary circular aluminum billets with low-carbon primary smelted hydro-powered ingots, drastically diminishing the embodied carbon of aluminum extrusions from the industry standard of 18 kg CO2e/kg down to beneath 4.5 kg CO2e/kg.
Circular Metallurgy & EPDs
Global contracts increasingly demand ISO 14025 Environmental Product Declarations (EPDs). Procuring 6060-T66 alloys containing over 40% certified post-consumer scrap is rapidly becoming mandatory for LEED Platinum and BREEAM Outstanding credits.
Multi-Cavity Isothermal Design
Traditional flat thermal break strips have been completely replaced by 34mm–54mm multi-cavity glass-fiber-reinforced polyamides (PA66 GF25) filled with expanded aerogel or polyolefin foam to ensure completely linear isothermal gradients across assemblies.
Integrated Mechatronics (Smart Envelopes)
Concealed motorized chain actuators, integrated photovoltaic (BIPV) framing transoms, and synchronized building management system (BMS) sensors for automated purge ventilation and dynamic solar tracking are setting new standards in luxury residences.
Extreme Climate & Seismic Resilience
With volatile coastal hurricanes and high-magnitude seismic events across Pacific rim markets, fenestration specs require dual-corner mechanical crimping with two-component polyurethane corner injection sealant to withstand up to 7,500 Pa cyclic wind loads.
Technical Fenestration Specification Comparison
The data matrix below evaluates standardized commercial tier windows against our factory-calibrated DERCHI high-performance fabrication configurations:
| Evaluation Parameter | Standard Commercial Grade | High-Spec Thermally Broken | DERCHI Architectural Master Grade |
|---|---|---|---|
| Alloy Ingot Purity & Wall Thickness | Secondary Scrap Ingot / 1.4mm profile | Primary 6063-T5 / 1.6mm–1.8mm | Primary 6060-T66 / 2.0mm–3.0mm Structural |
| Thermal Isolator Barrier | 14.8mm Single-Rib PVC/Nylon Strip | 24mm Standard Polyamide Strip | 34mm–45mm Technoform PA66 GF25 Multi-Chamber |
| Whole-Window Heat Loss (Uw) | 3.2 – 3.8 W/(m²·K) | 1.8 – 2.2 W/(m²·K) | 0.85 – 1.30 W/(m²·K) [Passive House Certified] |
| Water Penetration Resistance | 250 Pa – 300 Pa | 450 Pa – 600 Pa | Class E900 (≥ 900 Pa static & dynamic test) |
| Acoustic Attenuation (Rw / OITC) | Rw 28 – 31 dB | Rw 35 – 38 dB | Rw 42 – 48 dB (Acoustic laminated PVB/SentryGlas) |
| Hardware & Cycle Durability | Generic Zinc Alloy / 10,000 cycles | Standard Domestic Hardware / 25,000 cycles | Siegenia / Roto German Grade / 100,000+ operational cycles |
Why Global Specifiers Partner with DERCHI Windows
Operating from our 180,000 m² production complex in Shishan Town, Nanhai District, Foshan City—the recognized epicentre of the global aluminum fabrication trade—Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI) represents the culmination of 25 years of metallurgical research, fenestration engineering, and bespoke architectural execution.
Automated CNC Machining & Unrivaled Dimensional Precision
Our fabrication lines utilize German-imported elumatec 5-axis CNC profile machining centers, guaranteeing cutting and routing tolerances within ±0.1mm across spans of up to 6,500mm. Every miter joint is assembled with high-tensile solid cast aluminum corner cleats, fastened with stainless steel shear pins, and injected with two-component Henkel corner joint sealant. This eliminates corner hairline moisture infiltration, corner flex under cyclical hurricane wind shears, and thermal bridge distortion over a guaranteed 30-year operational life.
- End-to-End Vertical Integration: In-house precision profile extrusion, anodizing, fluorocarbon (PVDF) spraying, insulated glass unit (IGU) lamination, and automated assembly testing.
- Globally Recognized Certifications: Fully audited compliance covering CE (EN 14351-1), AS2047 (Australian National Benchmark, Class N6), ISO9001, and UL 10C / NFPA fire-rated standards.
- Bespoke Architectural Engineering: Full technical shop drawing submittals in AutoCAD, Revit, and BIM within 48 hours for general contractors, facade consultants, and master architects.
- Standardized Ocean-Safe Export Crating: Fumigated solid-plywood case packing with desiccant protection, EPE edge guards, and shock-resistant corner blocking preventing transit damage.
Surface Metallurgy Excellence
We offer PPG certified 3-coat/2-bake Kynar 500 fluorocarbon (PVDF) electrostatic coatings and 25μm hard-coat architectural anodizing resistant to 3,000 hours of continuous ASTM B117 salt spray testing.
Full Structural Test Data
Our in-house hydraulic chamber can simulate severe typhoons up to 8,000 Pa wind pressures, dynamic water ingress testing per ASTM E331, and structural deflection analysis per AAMA 101 standards.
Direct Engineering Support
Our dedicated bilingual B2B technical unit collaborates with project estimators and site engineers across all global time zones to ensure flawless anchor clip placement, thermal expansion gaps, and sill flashing details.
Frequently Asked Questions for Commercial Buyers & Importers
In-depth technical answers addressing code compliance, alloy specifications, acoustic engineering, container consolidation, and international commercial shipping terms.
We strictly extrude our window and curtain wall frames using virgin prime-grade 6063-T5, 6063-T6, and 6060-T66 aluminum-magnesium-silicon alloys conforming strictly to ASTM B221 and EN 755 standards. We reject low-grade re-melted billet scrap, ensuring tensile yield strengths exceeding 160–205 MPa. This structural purity eliminates metallurgical porosity, prevents micro-cracking during bending operations, and guarantees uncompromised anodizing and powder coat adhesion across high-salinity marine environments.
Our products are engineered and tested against the world's most stringent regulatory frameworks. For North America, we verify assemblies via NFRC (U-factor, SHGC, VT) and AAMA/WDMA/CSA 101/I.S.2/A440. For Australia and New Zealand, our systems carry formal AS2047 and AS1288 accreditation at Class N6 cyclonic ratings. For the European Union, full CE-marking under EN 14351-1 is maintained alongside factory production control audited to ISO9001:2015. Certified third-party laboratory test reports are provided directly with every commercial proposal.
For standard architectural profile dies and stocked finish selections (anodized matte black, architectural white, bronze, charcoal grey), production lead time is typically 25 to 30 calendar days upon final sign-off of our AutoCAD shop drawings and deposit receipt. For complex custom extrusion geometries requiring new extrusion die tooling, or custom PVDF color formulation matching RAL color swatches, add approximately 10 to 14 days for die creation and sample extrusion sign-off.
Yes. In addition to standard double and triple Low-E insulated glass units (IGUs) filled with 90%+ Argon gas, our automated glass processing facilities produce hurricane-resistant laminated units using Kuraray SentryGlas (SG) interlayers, high-attenuation acoustic laminated glass achieving Rw ratings up to 48 dB, ceramic frit solar control patterns, and EN 1063 / UL 752 Level 1–8 ballistic rated bullet-resistant glazing configurations.
We employ a rigorous four-stage quality gate protocol: (1) Raw extrusion spectrographic chemical analysis and ultrasonic flaw detection; (2) Pre-assembly CNC machining tolerance checks on digital calipers; (3) Mandatory 100% dry-fit mock assembly of master frames and sashes in our factory before glass installation to confirm squareness, diagonal variance (≤ 1.0mm), and gasket compression; and (4) High-definition photo/video inspection archives sent directly to the client before seaworthy pallet crating.
Absolutely. As part of our comprehensive one-stop architectural envelope capability, clients frequently consolidate custom aluminum casement/sliding windows, heavy-duty cast aluminum entry doors, minimal-frame glass pivot doors, and automatic garage doors within a single 40ft High Cube (40HQ) container. Our logistics department produces detailed 3D container loading plans (utilizing CargoWiz simulation) to maximize space efficiency while avoiding load shifting during heavy seas.
Our standard high-performance builds integrate premium European multi-point locking gear from world-renowned German manufacturers including Siegenia, Roto Frank, and G-U (Gretsch-Unitas), as well as Sobinco and Hopo systems. For North American double hung or horizontal sliding projects, we incorporate Truth Hardware balance and sash locking mechanisms. Clients can also specify specialized hardware suites, access control wiring, or request custom-milled handles finished to project specs.
We support FOB (Foshan / Guangzhou / Shenzhen), CIF, CFR, and DDP (Delivered Duty Paid) shipping terms to all major global ports including Los Angeles, New York, Santos, Callao, Sydney, Rotterdam, and Jebel Ali. Standard commercial payment terms are 30% to 50% deposit via telegraphic transfer (T/T) upon contract execution and approved shop drawings, with the balancing remainder settled against the Bill of Lading (B/L) copy or an irrevocable, confirmed Letter of Credit (L/C) at sight.
We provide a comprehensive commercial warranty structure: 10 to 15 years on structural integrity and structural miter joints; 10 to 20 years on PPG fluorocarbon (PVDF) surface coating against chalking, fading, and peeling; 10 years on insulated glass units against seal failure, internal condensation, or gas leakage; and 5 to 10 years on European mechanical operating hardware. All warranty terms are backed by direct replacement component dispatch via express air courier.
We eliminate installation confusion by providing comprehensive 3D shop drawings, localized cross-sectional anchor detailing, and sequential site installation manuals with every container dispatch. Each window unit is barcoded with opening location numbers keyed to the master architectural elevations. Additionally, our engineering division offers real-time video conference technical consultations during initial rough opening fits, ensuring perimeter shimming, sub-sill flashing, and waterproofing membranes are executed flawlessly.
