Engineered Double Front Doors & High-Performance Fenestration
Constructed from primary 6063-T5/T6 billet alloy with multi-cavity thermal insulation, multi-point perimeter locks, and heavy-duty concealed or 3D adjustable hinges. Explore our core product configurations below.
Urban Noise Reduction Aluminum Sliding Windows Thermal Break
Sunnysky Hurricane Proof Glass Automatic Garage & Estate Doors
European Standard Luxury Aluminium Anti-Theft Double Entry Doors
Commercial Heavy Duty Thermal Break Double Sliding Door

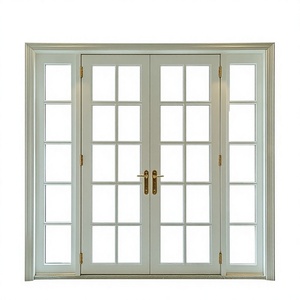

Sunnysky Patio Tempered Double French Swing Glass Doors
Aluminium Louver Window Adjustable Glass Shutter System

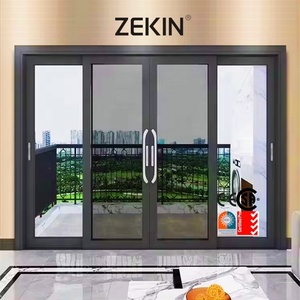

Modern Design NFRC AS2047 Aluminium Double Glass Sliding Door
Engineering & Sourcing Aluminium Double Front Doors from Foshan Hub
For property developers, architectural specifiers, general contractors, and trade wholesalers, procuring high-performance double front entrance doors demands an exhaustive understanding of metallurgical structural integrity, thermal break bridge mechanics, surface finishing science, and export logistical crating.
Alloy Composition & Profile Wall Thickness
China's top tier factories utilize virgin 6063-T5 or 6063-T6 grade aluminium billets, strictly avoiding scrap or secondary remelt alloys that induce internal porosity. While residential interior doors often compromise at 1.2mm or 1.4mm profile thicknesses, structural double front doors must carry immense dead loads and wind uplift.
Export configurations for luxury villas and high-traffic public entries specify heavy-wall extrusions ranging from 2.0mm to 3.0mm, preventing frame racking, corner sag, and sash deviation over decades of cyclic use.
Thermal Barrier & Isothermal Performance
Older cold-bridge aluminium doors suffered severe condensation in heating climates and extreme solar gain in tropical zones. Modern double front doors incorporate polyamide insulating struts (PA66GF25 reinforced with 25% glass fiber) crimped into knurled extrusion cavities.
This barrier separates the external thermal envelope from the interior space, reducing U-values below 1.6 W/(m²·K). Dual multi-chamber hollow profiles combined with warm-edge spacer bars ensure whole-unit thermal equilibrium.
Multi-Point Security & Storm Resistance
Because double entrance doors meet at a central floating mullion or astragal, they represent an engineering vulnerability if poorly locked. Leading manufacturers integrate European groove (Euro-groove) hardware channels accommodating 5 to 9-point interlocking gear systems.
Top and bottom shoot bolts lock deep into hardened stainless steel strike plates, resisting hydraulic pry loads exceeding 10kN and achieving RC2/RC3 forced entry resistance.
| Engineering Attribute | Standard Export Tier (China Grade B) | DERCHI Factory-Direct Benchmark (Tier A) | Testing Standard / Verification |
|---|---|---|---|
| Profile Base Metal | Recycled Secondary Ingot (Impure Al) | 6063-T5 / T6 Virgin Billet Extrusion | GB/T 5237 / ASTM B221 |
| Structural Frame Thickness | 1.4mm - 1.6mm | 2.0mm - 3.0mm Reinforced Heavy Duty | EN 12020-2 Dimensional Caliper |
| Thermal Insulation Strip | PVC or low-grade recycled nylon | Imported PA66GF25 Glass-Fiber Polyamide | DIN 16941 / ASTM D638 |
| Glazing Specification | Single or unsealed 4mm+6A+4mm | Double/Triple Tempered + Argon + Low-E | IGCC / AS/NZS 2208 / EN 12150 |
| Surface Coating | Basic Wet Paint / 40μm Powder | AkzoNobel / PPG Fluorocarbon (PVDF) ≥65μm | AAMA 2604 / AAMA 2605 (Salt Spray 3000h) |
| Air/Water/Wind Ratings | Untested / Baseline generic | Wind ≥4500Pa, Water 700Pa, Airtight Class 8 | AS2047 (N6 Level) / ASTM E330 / CE |
Future Procurement & Technological Trends (2025-2030)
Global building codes such as Title 24, IECC, and Eurocode are radically shifting commercial and residential entrance specifications. Forward-looking buyers must prioritize these core shifts.
Oversized Pivot & Double Grand Entrances
Standard 2.1-meter ceiling heights have given way to 3.0m to 3.8m grand entrances in contemporary villa and hotel architecture. Procurement is heavily shifting toward oversized pivot leaves that carry 400kg to 800kg loads using heavy-duty German concealed floor springs with 360-degree dampening, integrated draft excluders, and zero-threshold flush accessibility.
Smart Biometric & IoT Building Integration
Mechanical brass keys are rapidly being phased out in favour of multi-layered biometric recognition embedded directly inside vertical push handles. Factory integration of 3D facial recognition, Tuya/Zigbee protocol bridges, motorized multi-bolt shoot bars, and battery-buffered hidden conduits allows uncompromised exterior security without aesthetic clutter.
Extreme Climate Hardening & Decarbonization
Coastal saline resistance (ISO 12944 C5-M marine rating) and extreme thermal cycle resistance are mandatory. In hurricane belts and coastal zones, suppliers must provide certified impact laminated safety glass (SGP structural interlayer) alongside low-carbon, hydro-powered primary aluminium billets to comply with international green building lifecycle mandates.
Engineered by Guangdong Dejiyoupin Doors and Windows Co., Ltd. (DERCHI)
Recognised as one of the definitive Top 10 premium door and window brands in China, DERCHI operates a massive 180,000㎡ intelligent production base in Shishan Town, Foshan — the global heart of architectural aluminium extrusion.
- Over 25 Years Engineering Longevity: 600+ skilled craftsmen, structural engineers, and ISO9001 certified QC inspectors.
- Rigorous Global Certifications: Fully certified to Australian AS2047 (N6 cyclone rating), European CE, ISO9001, and UL fire ratings.
- End-to-End One-Stop Logistics: Consolidate aluminium double entrance doors, interior wooden doors, and automated garage systems in a single maritime container to minimize shipping overhead.
- Shop Drawings & Tailored Engineering: Free CAD shop drawings, 3D structural analysis, and customized finish matching provided before manufacturing.
Frequently Asked Questions by Global Buyers & Importers
Clear, technically accurate answers to eliminate overseas sourcing risks, customs barriers, and installation pitfalls.
Ready to Engineer Your Architectural Double Entry System?
Send us your door schedule, rough opening sizes, or CAD elevations. Our structural fenestration engineers will provide shop drawings and a factory-direct FOB/CIF quote within 24 hours.
