Explore our CE and AS2047 compliant door and window assemblies, fabricated from premium-grade 6063-T6 aluminum alloys and precision multi-chamber thermal breaks.
Ultra-slim architectural profile offering acoustic insulation, sleek modern cottage aesthetics, and corrosion-resistant anodized finishes.
CE-certified electric motorized exhaust skylight integrating tempered glazing, multi-sensor automation, and certified smoke clearance profiles.
Engineered for extreme cyclonic wind pressures and coastal saline corrosion; delivers watertight interlocking profiles and high acoustic mitigation.
Heavy-duty dual track sliding configuration with concealed pleated insect barrier mesh, ideal for verandas, cottages, and hospitality chalets.
Refined cottage pane aesthetic featuring true divided light bars, double Low-E argon insulated units, and multi-point security hardware.
Solid cast aluminum blast and forced-entry resistant structural panels suited for luxury private estates, institutional compounds, and diplomatic villas.
1.8mm heavy extrusion wall thickness with integrated Georgian/cottage grids inside the sealed insulated glass unit for effortless maintenance.

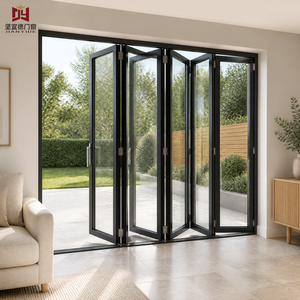

Heavy-duty bottom-rolling bifold system allowing wide architectural openings, seamlessly marrying classic divided-pane styling with modern open living.
Aluminium cottage pane doors—often recognized across European, British Colonial, and Commonwealth architecture as subdivided French casements or multi-lite glazing assemblies—have evolved from purely decorative timber frames into mission-critical structural systems. Today's commercial developments, boutique hospitality projects, and coastal villas demand that the timeless visual rhythm of divided lites satisfy aggressive international building regulations, notably EN 14351-1 (CE Marking for Windows and External Pedestrian Doorsets), AS2047, and stringent global energy conservation directives.
As a dedicated tier-one manufacturer and global exporter operating across a 180,000㎡ industrial footprint, DERCHI re-engineers the quintessential cottage pane architecture. By replacing obsolete timber and uninsulated rolled steel with 6063-T6 architectural grade structural extrusions, polyamide (PA66GF25) thermal barrier breaks, and hermetically sealed double/triple glazing units, we resolve the historical challenges of cottage pane systems: condensation buildup, draft vulnerability, maintenance intensive paint cycles, and catastrophic thermal transfer.
Standard architectural lites often buckle under intense wind vortexes. DERCHI cottage pane assemblies utilize cold-formed extruded mullion splines and corner-cleated crimped joints that meet class-leading wind load resistance up to 3000 Pa (Serviceability Limit State), suitable for cyclonic and coastal oceanfront installations.
Traditional multi-lite metal doors act as thermal bridges, creating cold spots and moisture precipitation inside modern interiors. Our CE certified cottage doors embed glass fiber-reinforced polyamide 66 thermal insulation strips, achieving composite U-values as low as 1.4 W/(m²·K) with argon gas-filled Low-E glazing.
Divided lite aesthetics no longer necessitate acoustic vulnerability. Using continuous EPDM perimeter weather-stripping gaskets, multi-point compression cam locks, and laminated safety glass configurations, our assemblies achieve laboratory-certified sound transmission class (STC) ratings exceeding 38 dB.
| Performance Metric | Standard Non-Thermal Cottage Door | Timber Divided Lite Heritage Door | DERCHI CE Certified Thermal Aluminium Cottage System |
|---|---|---|---|
| U-Factor (Thermal Insulation) | > 5.2 W/(m²·K) (Extremely High Loss) | 2.4 – 3.2 W/(m²·K) (Moderate) | 1.3 – 1.6 W/(m²·K) (High-Efficiency Compliance) |
| Air Permeability (EN 12207) | Class 1 (Draft prone) | Class 2 (Seasonal warping) | Class 4 (Hermetically Sealed Compression) |
| Water Tightness (EN 12208) | Class 3A (100 Pa) | Class 4A (150 Pa) | Class 9A / E900 (> 900 Pa Driving Rain Resistance) |
| Structural Wind Load (EN 12210) | Class B2 | Class C2 | Class C5 / N6 Rating (Coastal & High-Rise Spec) |
| Cycle Life & Maintenance | Surface oxidation; low hardware life | Annual sanding, repainting, rot risk | AkzoNobel Qualicoat Powder Coated; 100,000+ Cycles |
Strategic supply chain indicators for architectural specifiers, general contractors, and tier-one importers navigating 2026–2030 building standards.
Global architectural procurement is shifting decisively. While budget residential relies on grids inside glass, luxury developments demand True Divided Lites or structural applied exterior Georgian bars with duplex spacer bars to recreate heritage depth without sacrificing modern IGUs.
Industrial chic and heritage renovations mandate ultra-narrow sightlines (sub-45mm frame profiles) that replicate vintage Crittall-style steel doors while achieving stringent European Energy Performance of Buildings Directive (EPBD) mandates.
Importers are mitigating freight risk by packaging cottage swing doors, panoramic bi-folds, matching awning windows, and cast-aluminum main gates within consolidated high-cube shipping containers to compress duty and clearance expenditures.
Modern luxury entry cottage doors are integrating biometric access control, automated concealed multi-bolt locking systems, and hidden motor-actuated pivot hardware rated for 400kg+ oversized sashes.
Based in Foshan—the world's epicenter of advanced aluminum extrusion engineering—Guangdong Dejiyoupin Doors and Windows Co., Ltd. represents institutional manufacturing scale and verifiable reliability.
Every cottage pane door profile and glazing assembly undergoes testing at accredited laboratories. We supply comprehensive technical compliance dossiers including EN 14351-1 CE performance declarations, wind pressure certifications, and UL fire-rating reports.
Our dedicated engineering department translates complex architectural schedules into verified shop drawings, structural anchorage details, and mullion wind-deflection analyses before manufacturing commences, eliminating expensive on-site installation rework.
Overseas transit across turbulent waters requires specialized protection. Our fenestration systems feature protective film, corner edge buffers, moisture-barrier wrapping, and fumigated steel-bracketed plywood crates guaranteed to withstand multimodal shipping handling.
Clear, engineering-backed answers addressing structural design, code verification, glazing options, and overseas logistics.
